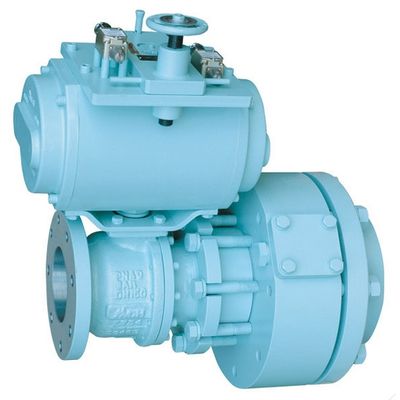

Fortune - Model HMS (MS55C) -Main Starting Valve without Slow-Turning Device

This product is used for diesel engine in many ships to induce an ignition using a compressed air. It can be applied to 98MC of Main B&W Engine which is produced over the world. This product is completed by combining various assemblies from each group which ensures high quality and easy maintenance.
It obtained type and design approval by ship’s classifications which means that its quality is verified by the world level organization

Applicable Fluid: Compressed Air
Applicable Pressure: Max. 33 kg/cm²
Applicable Temperature: Max. 80°C
End. Connection Type: DIN PN 40
Size: PN65, PN100, PN150, PN200
Material (Actuator): Body/Trim : Cast Steel / Stainless Steel
Material (Ball Valve): Body/Trim : Cast Steel / Stainless Steel
