FOTRIC

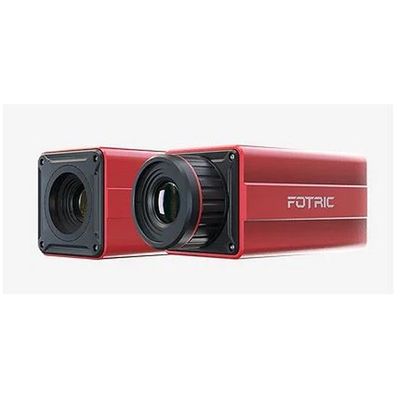

FOTRIC - Model 600s -Robust and Professional Fix-mount Infrared Cameras
FromFOTRIC
The FOTRIC 600s is a series of robust and professional fix-mount infrared cameras. It offers radiometric streaming capability as well as up to 2000°C high temperature expansion design, making it adaptive for industrial process monitoring. In addition, equipped with abundant lens accessories and FOTRIC SDK, its possibilities are endless.
Most popular related searches
infrared camera
industrial process monitoring
array detector
thermal imaging
process monitoring
process monitoring system
industrial monitoring system
emissions standard
emissions monitoring
- Key Features : 628CH
- Thermal resolution : 640*480
- Detector type : Uncooled focal plane array detector
- Thermal sensitivity : <30 mk
- Detector pitch : 17μm
- Spectral range : 7.5μm~14μm
- FOV & IFOV : Dependent on the lens configuration
- Focus type : Automatic
- Temperature range :
- -20?-150?
- 0?-650?
- 300?-2000?
- Accuracy : ± 2 °C or ± 2 %, whichever is greater
- Measurement parameters : Emissivity (0.01-1.0); Ambient temperature; Reflected temperature; Relative humidity; Distance; External optics compensation
- Partial emissivity : Support
- Palettes : 10 standard palettes and 10 inverted palettes
- Image process : Non-uniform calibration, digital enhancement
- Mirror mode : Left-right, up-down, center
- Video compression standard : H.264
- Radiometric stream : 25Hz
- Pan-tilt-zoom station compatibility : Support Pelco-D protocol
- Measurement tools : 5 points, 10 lines and 10 regions, support Modbus output
- Software : AnalyzIR; Open API FOTRIC SDK
- Ethernet type : 10M/100M/1000M adaptive
- Network protocols : IPv4,UDP,TCP,RTSP,RTCP,RTP
- Simultaneous stream : Mainstream and substream: 10; Radiometric stream: 1
- IP connection interface : ONVIF
- Power connector : Screw-on wire terminal
- Network connector : Screw-on RJ45 with status indicator LED
- Alarm input/output : 1 relay output, load capacity:24V,1.5A
- 1 optocoupler output:Voltage:3.3-24V,Max current: 35mA
- 1 optocoupler input:Voltage:3.3-24V,Input current : 5mA-15mA
- Serial port : 1 RS-485
- Power supply : 12V/24V DC, PoE
- Power consumption : 4W
- Safety standards : GB 4943.1-2011 | EN 62368-1:2014+A11:2017;GB/T 19870-2018
- Electromagnetic compatibility :
- GB/T 18268.1-2010 | EN 61326-1:2013
- GB 17625.1-2012 | EN IEC 61000-3-2:2019
- GB/T 17625.2-2007 | EN 61000-3-3:2013/A1:2019
- GB/T 19870-2018
- GB 4824-2019
- EN 55032:2015/A11:2020
- EN 55035:2017
- FCC CFR47 Part15 subpart B
- Protection level : IP40
