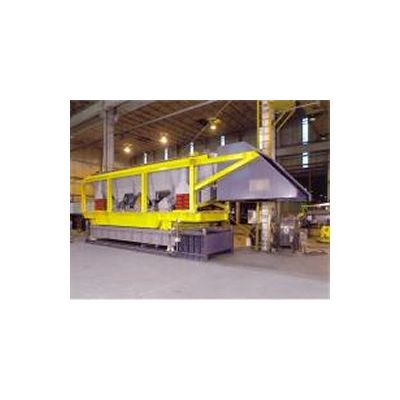

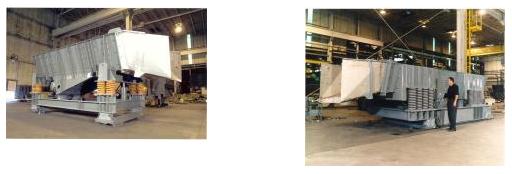

Foundry Vibrating Feeders

Carrier foundry vibrating feeders provide metalcasters the most efficient and economical method of conveying bulk materials, with the easiest means of controlling feed rate.

• Tuned, two-mass, natural frequency and direct-drive designs available in widths from 12 inches to 10 feet and lengths up to 30 feet.
• High temperature designs available for handling materials up to 2000 deg. F.
• Choice of construction from carbon steel to metal alloys.
• Polished trough and special coatings available for sticky products.
• Two-directional conveying design available.
• Options include scalping or screening decks, removable dust-tight covers, overhead drive arrangement, abrasion resistant liners, explosion-proof designs, etc.
• Available in fixed or adjustable rate designs.
• Designed to accommodate heavy headloads.
• Supported from below or suspended from above on soft steel coil or rubber isolation springs to reduce dynamic reactions to surrounding structures.
• Easy installation, low maintenance, and minimum downtime.
• Economical in initial cost and operation.
