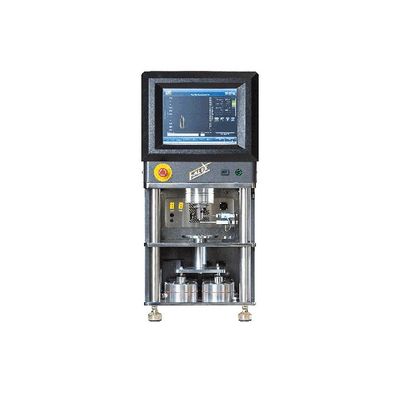

Falex - Four-Ball Tester
FromFalex
The new and improved Falex Four-Ball introduces a new approach to the time-tested tribology concept of four-ball testing. From the original test developed by Shell Oil Company, we’ve kept the best elements from our 60 years of mechanical upgrades and system automation and reimagined the rest for peak performance in today’s advanced labs. This revolutionary concept for the Falex Four-Ball yields an instrument that is smaller, safer, and more versatile with improved automation, calibration, and increased capabilities. It is the first in a new line of Falex Tribology test instruments.
Most popular related searches
- Variable test drive with a RPM range of l to 1800RPM
- Enclosed pneumatic loading system
- Standard loading range l toSOOKg Optional low range from 0 to 50Kg */- 0.2 Kg
- Programmable temperature control to 200C max (with auto start on temperature)
- Cycle counter with programmable cut-off
- Test duration timer with programmable cut-off
- Friction system with standard range of 0 to 250lbs
- Optional low range friction system (0 to lOlbs)
- Safety shield
- Compact design
- Width ; 17in
- Depth ; 24tn (28in with connections)
- Height ; 34in
- Network connection
- 3 USB connections one in the front and two in the back 1 Ethernet connection in the back
- Utility requirements
- 220V, 50/6OH2
- 20AMPS
- 80 PSI of clean dry air
