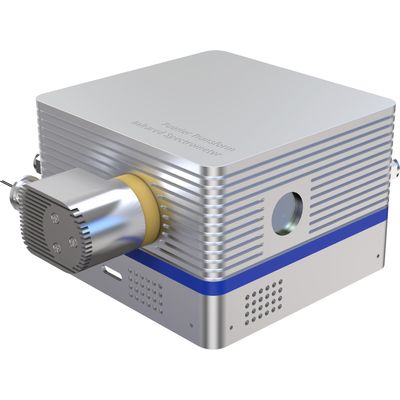

Zetian - Model ATP-300B -Fourier Infrared Spectrometer
The ATP-300B is a compact, lightweight and integrated high performance infrared spectrometer based on Fourier transform technology. The product consists of a light source, interferometer and detector. The spectrometer adopts a double hollow corner reflector with double pendulum design, which has the advantages of permanent alignment, good anti-vibration and anti-thermal effect; The detector is an MCT detector with 4-stage thermoelectric cooling which has the advantages of high sensitivity, low detection limit, high speed and high resolution and is very suitable for analyzing and testing under various complicated working conditions. This product can be used with different infrared accessories according to different applications, specially designed to provide optimal solutions for system integrators who customize FTIR analyzers.1. Modular design, compact and lightweight, easy to integrate
2. Special system calibration algorithm, can be adapted to a variety of complex working conditions;
3. Adopt FPGA technology with fast spectral analysis speed;
4. Advanced light receiving system and coating process, ensuring instrument stability and good signal-to-noise ratio;
5. Special driving device, maintenance-free, cost-effective.
Resolution：2cm-1,4cm-1,8cm-1,16cm-1, adjustable
Wavenumber Range：5000~830cm-1
Wavenumber Accuracy：Better than 0.1cm-1
Wavenumber Repeatability：0.01cm-1
Transmittance Repeatability：Better than 0.1%T
Signal-to-Noise Ratio：Better than 50000:1
Scan Speed：10 spectra/sec
Detector：MCT detector
Beam Splitter：Zinc selenide
Working Temperature：0~45℃
Communication Method：RJ45
Supply Voltage：24 V DC
Rated Power：＜50W
Dimensions：Interferometer: 125mm×119mm×97mm
Detector: 50mm×55mm×95mm
Weight：＜0.5kg
Light Source Supply：12VDC, 24W
Light Source Life：2 years of continuous use
