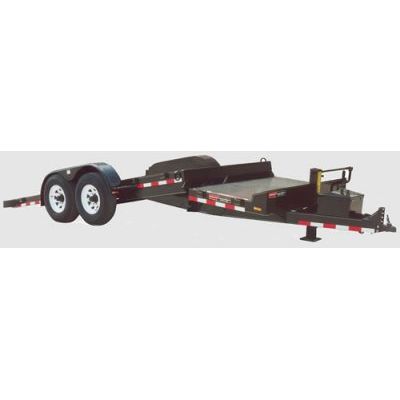

Mac-Lander - Model 20TFHWT -Frame Heavy Tilt Bed Trailer
FromMac-Lander Inc
12,000# GVWR or 14,000# GVWR with 7K drop axles, 12 volt electric/hydraulic power up/power down system, 8 bolt hubs, heavy duty jack, 6” channel frame and tongue. Rear 16’ tilts, front 4’ stationary. 10º loading angle.
Most popular related searches
- 12V Electric/Hydraulic Power Up & Down : Power Up & Down
- Deck Length : 4’ Stationary, 16’ Tilt
- Overall Width : 102”
- Width Between Fenders : 81”
- Axles : U-Lube 2 – 7000# Drop
- Brakes On All Axles : Electric
- Tire Size : 235/80R16 Radial 235/85R16 Radial LRG on 14,000 # GVWR
- Pattern : 8 On 6-1/2
- Adjustable Coupler : Standard
- Hitch Size : 2-5/16” Ball Coupler or Lunette Eye
- Hitch Height : 14” – 22”
- Bed Height : 23”
- GVWR : 12,000# & 14,000#
- Payload Capacity (Average) : 8580# on 12K#, 10,500# on 14K
- Floor : 2” Treated Wood
- Front Jack : 12,500#
- DOT Lighting : Standard
- Break-Away Kit with Battery : Standard
- Cross Members : 3” Channel on 18” Center
- Frame Rails : 6” Channel
- Stake Pockets : Standard
- Full Primer & Paint : Standard
- Three-Year Warranty : Standard
- Sealed Beam Tail Lights : Standard
- D-Rings : 6 Rings
