Frankstar - Integrated Wave Buoys

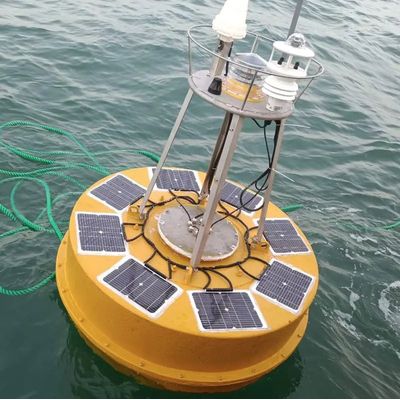

Integrated Wave Buoy is a simple and cost-effective buoy developed by Frankstar Technology for offshore, estuary, river, lake.The shell is made of glass fiber reinforced plastic, sprayed with polyurea, powered by solar energy and battery, which can realize continuous, real-time and effective monitoring of wave, weather, hydrological dynamics and other elements. Data can be sent back in current time for analysis and processing, which can provide high-quality data for scientific research. The product has stable performance and convenient maintenance.
Physical Parameter
Buoy
Weight:130Kg (no batteries)
Size: Φ1200mm×600mm
Mast (detachable)
Material:316 stainless steels
Weight:9Kg
Support frame (detachable)
Material:316 stainless steels
Weight:9.3Kg
Floating body
Material: shell is fibreglass
Coating: polyurea
Internal:316 stainless steel
Weight:112Kg
Battery weight (single battery defaults 100Ah): 28×1=28K
The hatch cover reserves 5~7 instrument threading holes
Hatch size: ø320mm
Water depth:10~50 m
Battery capacity: 100Ah, work continuously for 10 days on cloudy days
Environmental temperature: -10?~45?
Basic configuration
GPS, anchor light, solar panel, battery, AIS, hatch/leak alarm
Integrated observation buoy is a simple and cost-effective buoy for offshore, estuary, river, and lakes. The shell is made of glass fibre reinforced plastic, sprayed with polyurea, powered by solar energy and a battery, which can realise continuous, real-time and effective monitoring of waves, weather, hydrological dynamics and other elements. Data can be sent back in the current time for analysis and processing, which can provide high-quality data for scientific research. The product has stable performance and convenient maintenance.
