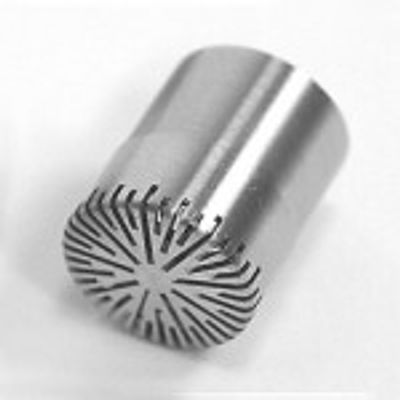

Norsonic - Model Nor1225 -Free Field Microphones
FromNorsonic AS
½” free-field, 50 mV/Pa sensitivity microphone. A general purpose microphone covering the frequency range from 3.15Hz to 20 kHz. Correspond to the Class 1 of the sound level meter standard IEC 61672.
Most popular related searches
- Cartridge size: ½” inch
- Main standard: IEC 61672 Class 1
- Polarisation voltage: 200 volt
- IEC 61094-4 Designation: WS2F
- Nominal sensitivity: 50 mV/Pa
- Frequency response: ±1dB 5 Hz – 10kHz, ±3dB 3.15 Hz – 20kHz
- Maximum SPL (3% dist): 146 dB 20µPa
- Self noise: 15 dB(A)
- Capacitance: 18 pF
- Temperature coeff. (250 Hz):
- Max. temperature: 300 °C
- Static pressure coeff. (250 Hz): -0.008 dB/kPa
- Relative humidity coeff. (no condens.): Not measurable dB/%
- Diameter: 13.2 mm
- Length: 16.2 mm
- Weight: 6 g
Nor1225S Trade-in microphone
Used, serviced, 1/2″ Free-field Condenser Microphone Nor1225 (only available against trade-in of malfunctioning Microphone Nor1225 without mechanical damage and less than 3 years old).
