MarlandModel RMS, RMT & MRI -Free-Wheel Clutches

SHARE

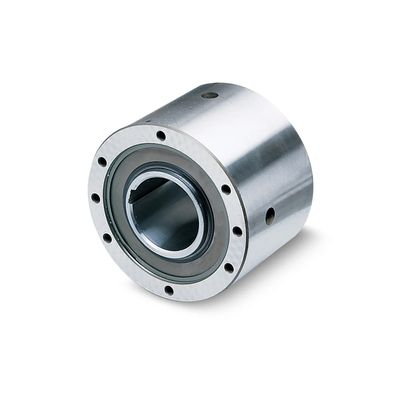

Marland Clutch brings to the North American market a line of proven sprag type free-wheel clutches. Marland utilizes the knowledge of its sister divisions, Stieber of Germany and Formsprag of the United States, to manufacture world class high performance sprag clutches in the United States. The RMS, RMT and RMI model freewheels include ball bearings and seals. These self-contained freewheels have a bolt circle on their outer race to which pulleys, gears and torque arms can be mounted. The freewheels are mounted onto shafts which may be of any diameter up to and including the maximum bore shown below. Keyways are provided.

Most popular related searches

RMS Model

  • Freewheel is a general purpose clutch used for overrunning, backstopping and indexing applications
  • Chromium-carbide surface sprags
  • Extra-long life
  • Maximum wear resistance
  • Lower maintenance costs
  • Available with oil or grease lubrication
  • Sized to match all of the brands on the market

RMI Model

  • Freewheels feature the use of centrifugal throwout sprags
  • Sprags will "lift-off" the outer race during high-speed inner race overrunning

RMT Model

  • Used for applications that require high outer race overrunning speeds and low
