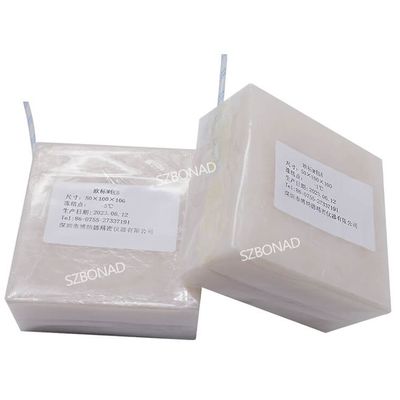

Bonad - Model BND-RT01 - IEC 62552 -Freezing Point Load Test Package for Refrigerator and Freezer
IEC 62552 freezing point load test package for refrigerator and freezerType:BND-RT01OverviewOur test packages are widely used globally for evaluating the performance of refrigerators, freezers, and other cooling appliances. They are known for their safety, affordability, and long-lasting durability.
Our test packages are widely used globally for evaluating the performance of refrigerators, freezers, and other cooling appliances. They are known for their safety, affordability, and long-lasting durability.
- Experience: Over 20 years in the industry.
- Quality: Made with high-quality raw materials and skilled craftsmanship.
- Reputation: Trusted by numerous refrigerator factories and laboratories worldwide.
- Customization: We offer custom-made test packages that comply with various standards.
- Support: Comprehensive after-sales service with a one-year warranty.

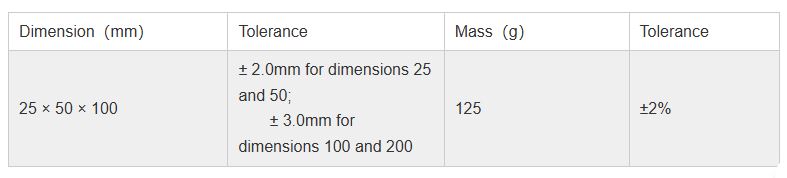

Dimensions and Tolerances
1. Our test packages come in the form of rectangular parallelepipeds with specific dimensions and mass as outlined below:
These test packages are equipped with thermocouples or pre-embedded copper tubes for temperature measurement. The dimensions are as follows:
- Dimensions (mm): 50x100x100
- Weight (g): 500
- Dimensional Tolerance: ±2mm (50), ±3mm (100)
- Weight Tolerance: ±2%
The packages shall consist of the following.
a)A suitable filling material containing, per 1 000 g:
- 230 g of oxyethylmethylcellulose;
- 764.2 g of water;
- 5 g of sodium chloride;
- 0,8 g of 6-chloro-m-cresol.
The freezing point of this material is - 1 °C (its thermal characteristics correspond to those of lean beef)
b) The following alternative composition of test packages with a freezing point near - 5 °C may be used:
- 232 g of oxyethyimethylcellulose
- 725 g of water;
- 43 g of sodium chloride;
- 0.6 g of 6-chloro-m-cresol.
In case of dispute, the composition of test package a) shall be used as the reference test package.For the measurement of chill compartments, only test package b), with a freezing point of - 5 °C, shall be used.
For disputes, the standard composition is used as the reference test package.
Custom Solutions:
We offer custom-made test packages tailored to your specific needs, including copper pillars and plugs for thermocouple wire connections.
