Heat-Trace - Freezstop Regular (FSR)

Freezstop Regular is approved for use in non-hazardous, and hazardous areas to world wide standards. Its self-regulating characteristics improve safety and reliability.

Freezstop Regular will not overheat or burnout, even when overlapped upon itself. Its power output self-regulates in response to the pipe temperature.

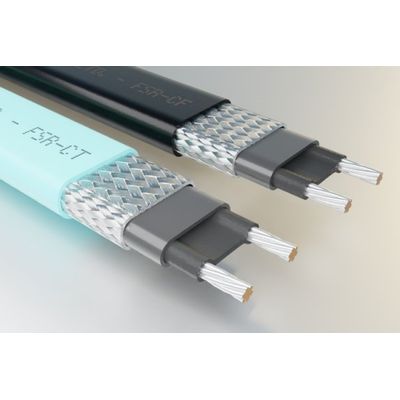

Freezstop Regular is available with a corrosion resistant thermoplastic outer jacket (FSR-CT). When greater corrosion resistance is required a fluoropolymer outer jacket (FSR-CF) can be supplied.

• Freeze protection of pipework & vessels
• Process temperature maintenance
• Refrigeration Industries

• Can be cut to length
• Output self-regulates in response to pipe temperature
• No overheating or burnout
• Inherently Temperature Safe

Freezstop Regular is available in 10, 17, 25, 31 and 40 W/m outputs as illustrated on the graph to the right. The graph shows the nominal power output at 230V when installed on insulated metal pipes.

• Maximum Continuous Exposure Temperature (Power ON) : 85°C (185°F)
• Maximum Permissable Exposure Temperature (Power OFF) : 85°C (185°F)
• Minimum Operating Temperature : -65ºC (-85ºF)
• Temperature Classification
• Up to 31 W/m T6 (85°C/185°F)
• 40 W/m or 277V T4 (135°C/275°F)
• Power Supply : 12 - 277 VAC
• Cable Dimensions FSS-CF : 12.95 x 5.95mm +/- 0.5mm
• Minimum Installation Temperature : -40°C (-40°F)
• Minimum Bending Radius :
• FSR-CT 35mm
• FSR-CF 35mm
• Weight kg/100m :
• FSR-CT - 12.9 kg
• FSR-CF - 14.8 kg
• Maximum Resistance of Protective Braiding : 18.2 Ohm/km
• Cable Gland Thread Size : M20
