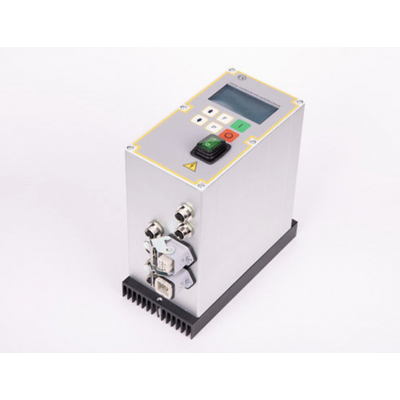

MP Elettronica - Model FQ2NG -Frequency Controller
The FQ2NG is a frequency controller capable of handling currents up to 15A at voltages of 110/230V. Designed for demanding applications in conveyor and assembly automation within the packaging and dosing industries, it features automatic frequency search and a current limiter to prevent damage to coils. This controller is ideal for use with linear vibrating feeders and vibratory bowl feeders, offering compatibility with markets operating at various frequencies without requiring mechanical adjustments. It supports amplitude sensing through the SIND3 sensor and provides multiple output configurations including 0-10V, 4-20mA, and dry contact options. The FQ2NG is housed in aluminum, with protection ratings up to IP55, and operates within a temperature range of -20 to 55°C. It complies with CE, EMC, and RoHS standards, making it a robust solution for industrial environments.FQNG is a frequency controller up to 15A, 110/230V. It has automatic frequency search and current limiter to avoid coils damage. It can be used with the amplitude sensor SIND3.
Application: Conveyor and assembly automation in packaging and dosing industry. Linear vibrating feeder and vibratory bowl feeder up to 15A. Perfect for markets with different Hz without need of mechanical tuning.
Max Output Current [A]: 10, 15, 6
Input Voltage [V]: 80-250
Vibration Frequency [Hz]: 5-140
Output Voltage [V]: 0-200
Stabilized vs Input Voltage: Yes
Soft Start [s]: 0-10
ON/OFF: 0-24V, Dry contact
Automatic Input PLC: 0-10V/4-20mA
Working Temperature: -20/55°C (-4/131°F)
Enclosure: Aluminum
Protection Index [IP]: IP55
Standard Conformity: CE, EMC, Rohs
Overflow Control: PNP/24V/Dry Contact
T_on/T_off/T_Alarm: 0-20/0-20/0-20
Switch Off Time Air-Valve [s]: 0-2
Amplitude Sensor: Sind3
