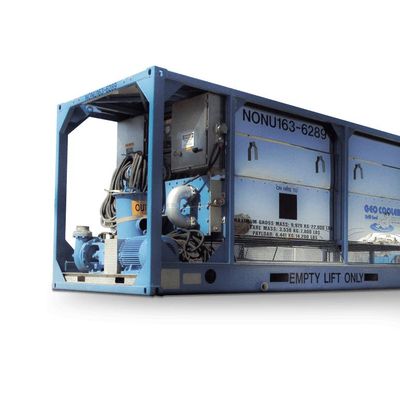

Geo-Cooler - Freshwater Mud Cooler
THE GEO-COOLER IS THE PERFECT SOLUTION FOR LAND BASED DRILLING WITH ACCESS TO FRESH WATER. The Freshwater Geo-Cooler is the industry standard for mud cooling needs in all HPHT and geothermal drilling areas of the world – both onshore and offshore. This proprietary mud cooler design incorporates the power and efficiency of a closed circuit cooling tower with the robust versatility of a DNV certified offshore ISO container – thus enhancing the mobility and flexibility of the drilling fluid temperature control system. Many of our customers have realized significant savings by sharing their Geo-Coolers™ across onshore and offshore drilling programs within the same region
- High Solids Content
- MUD FLOW: 800 GPM / 3028 LPM
- WATER CONSUMPTION: 3 GPM / 11.3 LPM
- ELECTRICAL: High Solids Content
- L x W x H: 20′ x 8′ x 8′6″, 6.1m x 2.4m x 2.6m
- WEIGHT: 22,000LBS / 9,797KG
With more than 35 years of dedicated mud cooling experience in the Oil & Gas and Geothermal Drilling Industry, Drill Cool Systems is the only company that can offer the innovation, expertise, engineering, and equipment required on the most critical and difficult high temperature wells.
The first mud cooler was successfully developed and deployed by the founder of Drill Cool Systems for the Geothermal Industry in the late 1970s. The benefits of the mud cooler to the rig and associated equipment quickly spread to the Oil & Gas Industry especially in the early HPHT gas wells in the Gulf of Mexico. The design quickly evolved to the first Geo-Cooler™ that was purpose built by Drill Cool Systems for the offshore industry. The 20ft Freshwater Geo-Cooler quickly grew as the industry standard for mud cooling needs throughout the Gulf of Mexico, Southeast Asia, Middle East, Australia and Japan along with other high temperature areas of the world.
The Geo-Cooler™ has continuously served the international high temperature drilling industry for more than 20 years. The ultra-portability, robustness, and flexibility of these drilling fluid temperature control systems continue to prove a valuable essential component of any onshore or offshore drilling program.
- Rugged design for months of maintenance free operation – even without a dedicated operator
- Excellent heat transfer efficiencies over the widest flow rates
- Proven reliability over thousands of installations
- Engineered for all drilling fluids (> 20 ppg fluid & > 20 mm diameter solids)
- 20′ offshore iso container, skid & trailer mounted models available – Modular design ships anywhere in the world (land, sea or air – the bear goes everywhere)
- Staged across the globe – ready for immediate mobilization
