Fritsche - Model 840 bar -High-Pressure Hoses
Fritsche 600-840 bar high-pressure hoses are suitable for grease and central lubrication systems of all conventional lubrication system manufacturers.

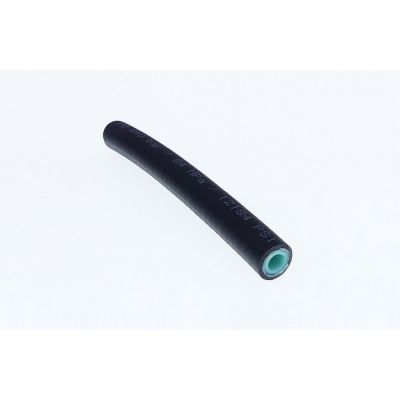

The structure of this type of high-pressure hose (600-840 bar) is such that an inner polyamide 6 (PA6) tube is encased and embedded in polyester mesh. The outer polyurethane coat is adhered onto the polyester mesh and the inner tube. Only this structure provides the required high compressive strength to our hose and ensures indispensable safety for assembly. Of course, the hose is also guaranteed to provide high flexibility.
For many physiological applications, separate requirements often apply, which must be checked case-specifically by the customer.
The responsibility for the implementation, mounting and use of high-pressure hoses is not the responsibility of Fritsche GmbH & Co.KG.
The warranty is limited to the specification of this technical data sheet.
Further warranties will not be accepted.
