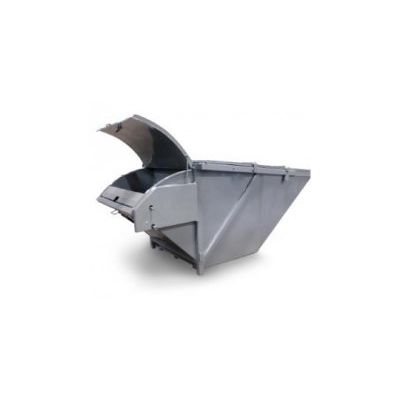

Front/Rear Load Compactor
Galfab’s neat, clean appearance, in both the rear loading model and the front loading model, blends attractively with its surroundings. With the Galfab’s low 40” loading height, even the most petite person can handle the job. Close the lid, insert the key in the Power Pack Console and turn the Galfab’s powerful hydraulic system on. The packing blade automatically cycles. Incorporated in the Galfab design are unique safety features that prevent the compaction cycle from operating while the loading chamber lid is open. Another important safety back-up feature is a mushroom STOP button on the Power Pack console that will halt operation at any point in the cycle. The Galfab’s key-operated system also allows the charge lid to be locked for controlled access.
GF6R/GF6F Specifications
- Manufacturer’s Rating - 1.00 y³
- Ram Face - 53”W x 46”H
- Clear Top Opening - 27.5” x 53.5”
- Loading Height - 40”
- Ram Penetration - 13”
- Packing Force Normal - 21,900 lbs
- Packing Force Max. - 24,700 lbs.
- Packing Pressure Normal - 1,550 PSI
- Packing Pressure Max. - 1,750 PSI
- Container Capacity - 6 y³
- Overall Dimensions - 140” L x 78”W x 61”H
Standard Power Pack
- Power Pack Cover - Protective Metal Cover with Hydraulic Hose Storage Slot
- Power Pack - 3 HP 1750 RPM TEFC
- Control Panel - 208/230/460 Volts 3 Phase 60Hertz, Key Start Switch & Stop Buttons
- Hydraulic Pump - 5 GPM Hi-Lo with 200 Mesh ScreenSuction Filter
- Reservoir - 13 Gallons
- Fluid - Northland Talmar Extreme ISO 32
- Hydraulic Hoses - 12” with Quick Hydraulic Couplers Industrial Hydraulic Couplers
- Cylinders - 2 - 3” x 16”
Cycle Time
- Time - 26 Seconds
