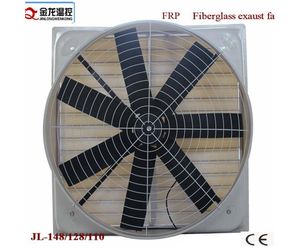

JINLONG - Model FRP Fiberglass fan -FRP Fiberglass cone exhaust fan
Advantage: 1.Fan housing: strength fiberglass. 2.Shutters: good plastic 3.Fan Propeller: 6pcs or 3pcs blades of propeller made by mould pressing. 4.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside. 5.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise. 6.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience for installation.
FRP Fiberglass cone exhaust fan
below is our main technical parameters :
|
Model |
Diameter blades (mm) |
Blades speed (r/min) |
Air flow ( m3 /h) |
Noise decibel |
power (kw) |
voltage(v) |
Blade material |
Size(mm) |
|
JL-146 |
1250 |
440 |
45000 |
≤68 |
0.75 |
380 |
FRP |
1460*1460*600 |
|
JL-126 |
1050 |
560 |
38000 |
≤68 |
0.75 |
380 |
FRP |
1260*1260*600 |
|
JL-106 |
880 |
700 |
32000 |
≤68 |
0.75 |
380 |
FRP |
1060*1060*600 |
Advantage:
1.Fan housing: strength fiberglass.
2.Shutters: good plastic
3.Fan Propeller: 6pcs or 3pcs blades of propeller made by mould pressing.
4.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
5.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.
6.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience for installation.
