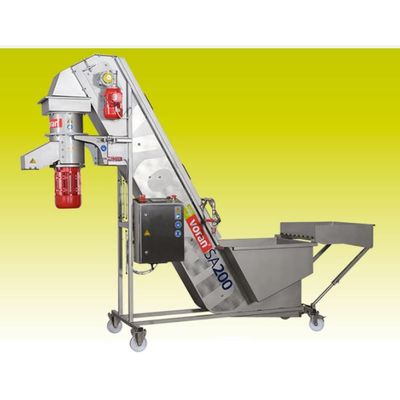

Voran - Model SA200- RM2,2 -Fruit Elevator with Centrifugal Mill
Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM2.2. The conveyor speed can be adjusted by using the integrated frequency converter. The Elevator is suitable for different foods e.g. fruits, berries or vegetables. Due to the movability, there is a use with our without the Centrifugal mill possible without any modification work.
Most popular related searches
Processable materials
Vegetables, Apples, Pears, Carrots, Cherries, Manioc, Quince, Beetroot, Tomatoes.
This represents just an example, based on different materials and a selection of fruit processed in practice.
- Scope of supply : perforated screen 9 mm and cutting screen 16 mm
- Height mash outlet : 1 330 mm
- Connection for washing vessel : 1 ½ “
- Connection for cleaning : ½ “
- Material : 1.4301 / AISI 305
- Weight : 222 kg
- Discharge height : 840 mm
- Height : 2 175 mm
- Width : 730 mm
- Length : 2 895 mm
- Electrical protection : 16 A
- Connected load : 400V 50Hz (3 phases)
- Motor rating : Elevator 0,25 (0,34) Mill 2,2 (3,0) kW (PS)
- Nominal rating kg/h : up to 1 000 kg/h
