FuelMaster - Boiling Water Reactor (BWR)

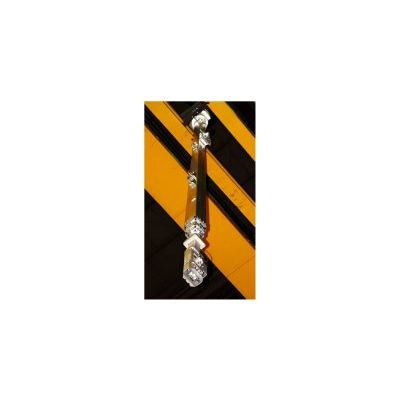

The new FuelMaster boiling water reactor (BWR) mast, designed by PaR Nuclear, Inc., a subsidiary of Westinghouse, is a freefloating, free-swinging, telescoping mast developed as a replacement mast on existing BWR refueling and fuel-handling platforms. Made of 304 stainless steel tubing, the mast is a square, tubular design with one stationary section and three moving sections. PaR Nuclear designed this mast with the following objectives in mind: simplicity, ease of maintenance, interchangeability of components, and suitable clearances to prevent binding and crud traps.
The FuelMaster mast is a gimbal-mounted design that is compatible with both PaR Nuclear and Stearns-Roger platforms. The gimbal design contains a spring system for damping impact forces on the mast in the vertical direction. The lower section of the mast also accommodates grapples that fit other PaR Nuclear masts, NF400 masts and NF500 masts. It easily connects to the grapple limit switches, lighting cables, grapple cylinder pneumatic plumbing and grapple camera. The square geometry of the mast design is stronger in bending than an equivalent-sized diameter circular mast due to its higher moments of inertia about the X and Y axes (horizontal centerlines).
Testing
During the design phase, PaR Nuclear engineering completed mast structural analysis using a solid model and finite-element analysis. PaR Nuclear designed the mast using 3D solid modeling software and performed dynamic analyses on the mast using finite element analysis. Cycle testing was conducted in Taiwan at a training facility under real-life conditions for six weeks.
