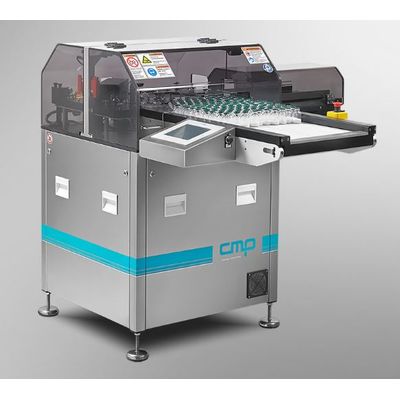

CMP PHAR.MA - Model O2 -Full Automatic Leak Test Machine
The O2 automatic leak test machine is specifically engineered for analyzing the oxygen headspace in lyophilized pharmaceutical products. It adheres to current Good Manufacturing Practices (GMP) and incorporates software that complies with 21 CFR Part 11 regulations, ensuring operational precision and data integrity. This machine is utilized for ampoules and vials with capacities ranging from 1 ml to 50 ml, facilitating a thorough and efficient inspection process critical in maintaining product quality. The integration of advanced inspection systems not only aids in defect detection and product uniformity but also enhances productivity and compliance with industry regulations. CMP PHAR.MA S.R.L.'s leak test machine is designed to meet the rigorous demands of modern pharmaceutical manufacturing environments.
O2 is a full automatic leak test machine to check the integrity of the containers. The control system is based on TDLAS technology. The machine can work standalone or can be integrated in the production line.
- Mechanical output: up to 50 pcs/min
- Range of diameters: from 10,75 to 46 mm
- Min. height: 40 mm
- Power consumption: 0,8 KW
- Power supply: 230 V single phase, 50-60 Hz
- Compressed air: 6 bar
- Air consumption: 50 L/min
- Weight: 150 Kg
- Dimensions: 1800 x 1100 x 1265 h mm
- Design: Complies with current GMP regulations. Software in compliance with 21 CFR part11
- Ampoules and vials
- Capacity: from 1 ml to 50 ml
- Freeze-dried products
- Leak test control
