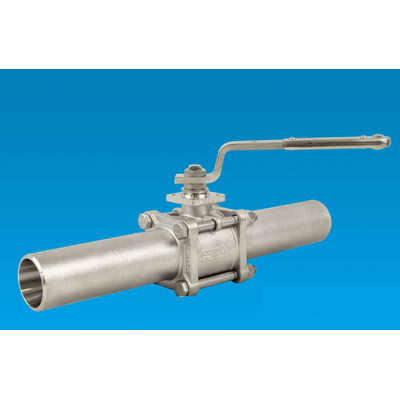

Adler - Model FR3 -Full Bore Ball Valve with Nipples
FromAdler SpA
Three pieces ball , full bore, manufactured from round steel bar, or casting, construction in according to EN 12516-2; ISO 14313; ANSI B1.1; DIN 3202 M3; ASME B16.34 BE/SW. With welded nipples length 100mm (standards). Available size from DN ¼” to DN 4” in carbon steel, stainless steel and special steel. Rating PN 20 ÷ 100. Connections SW/BW/ PE. Chevron ring on stem.
Most popular related searches
full bore ball valve
ball valve
safety system
pneumatic actuator
fugitive emissions
air testing
electric actuator
valve testing
degreaser
air valve
On request:
- with o’ring on stem (patent n°00219688).
- fire-safe execution according to ISO 10497 API 607
- fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).
- according to PED 14/68/UE directive
- according to ATEX 14/34/UE directive
- degreased according to ISO 23208 for oxigen service
- certified in safety system S.I.L. 3.
- certified for fugitive emission in class “A” ISO 15848.
- anti blow out proof stem
- construction and marking BS 5351
- carbon steel valves painted with first coat of epoxy-
polyammidic RAL 5012 35 microns - antistatic device
- top flange ISO 5211
- all valves 100% air tested under water at 100 psi
- PTFE / glass renforced PTFE half shell
- PTFE seats filled glass – carbon – S.S. – bronze, metal core
- stem extension
- cryogenic extension
- oval handle
- pneumatic actuator double/single acting
- electric actuator
- manual gear box
- pneumatic / electro-pneumatic positioner
