Abell-Howe - Full Cantilever Jib Cranes

SHARE

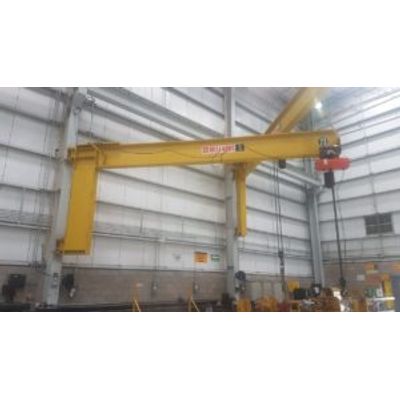

Full cantilever wall mounted jib crane model J906FC design affords the greatest hook height for a wall mounted type. Up to 212 degree rotation for column mount or wall mount.

Most popular related searches
jib crane
hazardous area
hook lift
cantilever wall
explosion hazard

Capacities

  • 1/4 Ton to 5 Tons.
  • Boom Lengths up to 20 ft. on select capacities.

Specifications

  • Up to 212-degree rotation for high hook lift applications.
  • Conservatively designed mast resists torsional forces from off-center loading.
  • Fabricated steel hinge fittings with bearings.
  • Boom is preset to compensate for deflection under load.
  • End stops at both ends of the boom to limit trolley travel.

Optional Accessories & Features:

  • Rotational stops.
  • Available in Motorized versions (consult factory).
  • Wind or Position Lock.
  • Galvanizing
  • Epoxy Paint
  • Spark-resistant and/or explosion-proof construction for hazardous locations.
  • Messenger wire assembly.
  • Hand geared rotation.
