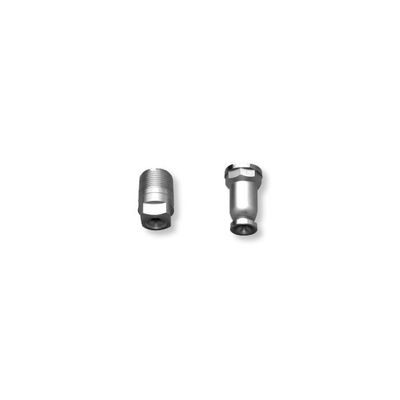

ButterworthModel Type BE/BG -Full-Cone Nozzles

SHARE

BE two-piece nozzles produce a full-cone spray, with angles ranging between 60° and 120°. The even spray distribution results from the design of the inner whirling vane. These nozzles can be used in applications where complete surface coverage is required. Models up to 1″ in thread diameter are machined. All other nozzles in this series are castings.

Most popular related searches

Connection: Female thread

  • Materials: Brass (T1)
  • 303 stainless steel (B1)
  • 316 stainless steel (B3)

BG two-piece nozzles are identical in performance to the BE style except that it has a male thread.

Connection: Male thread

Materials: Brass (T1)
303 stainless steel (B1)
316 stainless steel (B3)

Specifications Summary

Pressure range:

  • 3-150 PSI (10.3 Bar)

Flow range:

  • 0-514 US GPM (117 M3/Hr)

Spray Angles:

  • 60-120 Degrees

Materials of Construction (As Standard):

  • Brass; 303 S/S; 316 S/S
