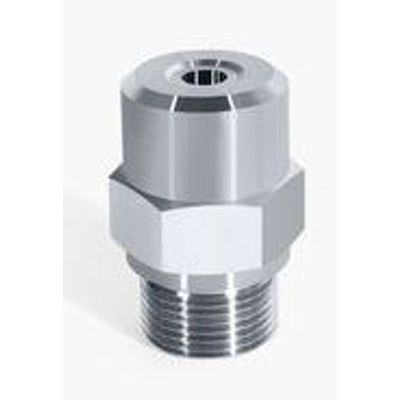

Schlick - Model 551-565 -Full-Cone Pressure Nozzles

SCHLICK full cone nozzles ensure reproducible results

• Spray pattern:    circular or square full-cone
• Spray angle:30° – 120°(customized designs from 5° to 140° available)
• Capacity: 0.5 – 60000 l/min at 3 bar

Innovative product design for perfect spraying

• Very even, circular or rectangular full cone
• Blockage-resistant
• Capacities of 0.5 – 60000 l/min
• Reproducible results
• Very wide range of applications
• Available with an additional head screw thread for screwing into a container, flange or pipe
• Extremely easy installation/de-installatio

Using specially developed and very varied swirl units SCHLICK full cone nozzles produce and extremely even full cone. This makes the nozzles much better suited for the even spraying of large surfaces.

A very large variety of models and sizes allows an air flow rate bandwidth of 0.5 – 60000 l/min at 3 bar.
The full cone nozzle is classified and characterised by air flow at a differential pressure of 3 bar (nominal power at 3 bar).
