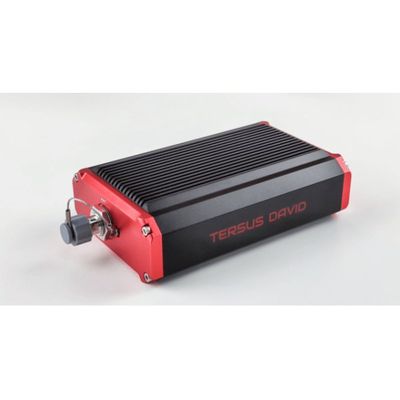

Tersus GNSS - Model David30 -Full-Constellation High Precision GNSS Receiver

SHARE

The Tersus David30 is a multi-constellation high precision GNSS receiver which offers centimeter-accurate positioning. It is designed for intelligent transportation, construction, machine control, precision agriculture, and navigation applications.

Most popular related searches
GNSS receiver
GNSS
multi-constellation GNSS receiver
waterproofing
built environment
environmental survey

Characteristics

The David30 GNSS receiver is built for outdoor environments with IP67-rated enclosure. The compact palm size makes it easy to integrate with various application systems.

  • Supports multi-constellation including BeiDou, GPS, GLONASS, Galileo, QZSS and SBAS
  • Supports 576 channels
  • Supports RTCM2.x/3.x, CMR/CMR+ corrections
  • Flexible for integration in different applications
  • Data update rate up to 20Hz
  • Input power range is 5~28V DC ---Note: Input of 28~36V DC can be customized.
  • IP67-rated dust- & waterproof enclosure, for reliability in harsh environmental conditions
  • Supports Nuwa surveying software
  • In-built 8GB (optional:32 GB) storage benefits data collection
