Drillmax - Model GA -Full Flow Flapper Type Float Valve with Carbide Insert Port

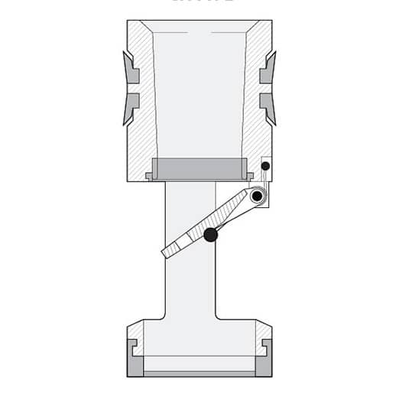

The Model GA is identical to the Model G except for a small hole in the middle of the flapper that makes the flapper ported. This port facilitates the ability for differential pressure readings at the surface. The port also allows for partial automatic filling of the drill pipe, during run in.
Float Valve Installation
Drillmax Drill Pipe Float Valves are easy to install. Simply lubricate the side seal rubbers and slide the float valve into the float bore of any tool that’s been prepared for a float valve.
CAUTION: Unless you are using automatic fill Models GC and Model GCA, fill the drill pipe regularly when going in the hole. Failure to do so can cause damage to the drill pipe, well formation and/or the float valves. Double stacking is not recommended unless using a Model GS Float Valve.
