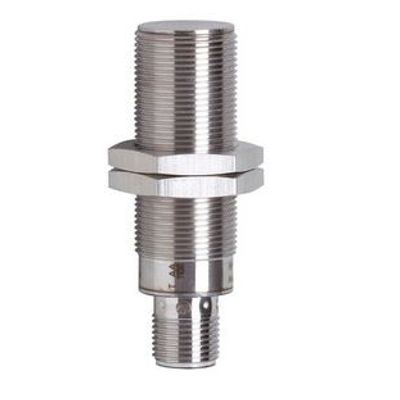

ifm - Model MGT203 -Full-Metal Magnetic Sensor
Long sensing range even through non-magnetizable metals. Temperature-stable and reproducible switch point. High protection rating for the food and beverage industry. Wide operating temperature range. Food-grade full-metal housing.
Most popular related searches
Product characteristics
- Electrical design PNP
- Output function normally open
- Sensing range [mm] 70; (referred to magnet M 4.0)
- Housing Threaded type
- Dimensions [mm] M18 x 1 / L = 60
Application
- System gold-plated contacts; Full-metal housing
- Pressure rating [bar] 100
Electrical data
- Operating voltage [V] 10...30 DC
- Current consumption [mA] < 10
- Protection class III
- Reverse polarity protection yes
Outputs
- Electrical design PNP
- Output function normally open
- Max. voltage drop switching output DC [V] 2.5
- Permanent current rating of switching output DC [mA] 100
- Switching frequency DC [Hz] 5000
- Short-circuit protection yes
- Overload protection yes
Monitoring range
- Sensing range [mm] 70; (referred to magnet M 4.0)
- Magnetic sensitivity [mT] 0.9
Accuracy / deviations
- Hysteresis [% of Sr] 1...10
Operating conditions
- Ambient temperature [°C] 0...100
- Protection IP 65; IP 68; IP 69K
