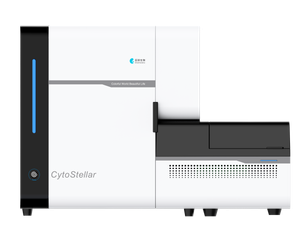

Challenbio - Model CytoStellar -Full Spectrum Flow Cytometer 1-5 lasers up to 72 fluorescent channels
A full spectrum flow cytometer for a wide range of applications and different budget: from 1 laser 9 colors to 5 lasers 70 colors. Users can switch between traditional flow cytometry and full spectrum flow cytometry by one button in the Software. High-power semiconductor lasers (405 nm, 120 mW, 488 nm, 50 mW, 638 nm, 70 mW), spatially separated, TEC thermostatic control (25±0.3°C) 3 scattered sources: FSC, SSC (blue), SSC (violet - 80nm for nano-particle detection). Detectable particle diameter 80nm ～ 50µm Sample loader with the built-in temperature control module, can support 4-37℃ continuous adjustment Speed: 5~240ul/min，adjustable Smart maintenance system: Automatic cleaning, Automatic startup/shutdown. The instrument can be started at a scheduled time. Fully automatic sample loader, compatible with various V/U/flat 96-well plate-20min, 384-well plate, 40-tube test tube rack, 40-well EP tube, 1 second for plate switching
CytoStellar is the latest spectral flow cytometer, designed to address the limitations of traditional multicolor flow cytometry. It features advanced spectral unmixing, auto-fluorescence removal, and nearly compensation-free analysis for accurate and efficient results.
How does CytoStellar solve your problems with unique advantages?
Extraordinary Performances:
● Integrated mastery of nanoscale research;
● Outstanding data storage capacity, with a single file storing nearly a billion events records, effortlessly detecting rare cells at a level of one in a million;
● 24-bit data processing, ultra-wide 7.2 logarithmic dynamic detection range, effortlessly responding to the detection needs for a millionfold difference in fluorescence intensity;
● One-click switching between full spectrum flow cytometry and traditional flow cytometry, excellent compatibility, dual ways of use, flexible and convenient.
Efficient Measurement:
● Complete 96-well plate rapid detection in just 20 minutes, accelerating high-throughput screening processes and improving work efficiency;
● The sample loading system is equipped with a built-in temperature control module, which can be continuously adjusted from 4–37°C to ensure the stability of various samples, such as "initial state";
● Automatic sample recycling design, effectively avoiding the waste of rare sample resources, and saving costs and time;
● Be compatible with a variety of sample tubes, from Falcon 5mL tube, EP tube to 96-well/384-well plates, all-inclusive.
Intelligent and Easy-to-use Software:
● Multi-level data management, with well-organized experimental group management;
● Guided user interface, simplified processes, easy to learn and use;
● Integrated with multiple analysis functions, one-click rapid analysis of antibody titration, cell cycle fitting, etc.;
● Automatic timed power on/off, intelligent maintenance and measurement, enabling you to enjoy worry-free experiments.
