AIRSENSE OlfoSense - Full-time Industrial Odor Monitoring Network
AIRSENSE Analytics and PCA Technologies from Italy have developed OlfoSense, the new control tool designed to create a network for odor leakage monitoring over large areas and at the perimeter of plants.
OlfoSense is a versatile device that can be used for urban air monitoring, putting you in constant touch with factors that affect public quality of life.
Chemical and petrochemical plants are high impact and entail environmental risks. People often complain about odors and that can lead to increased public health fears. An OlfoSense network guarantees protection in such dangerous cases, where the Bureau of Environmental Protection can react immediately if thresholds are exceeded.
In cooperation with PCA Technologies.
AIRSENSE Analytics and PCA Technologies have developed OlfoSense, an Intelligent Sensor Array designed for monitoring odour leakages over large areas, at the perimeter of plants and at sources.
OlfoSense is a versatile device that can be used for urban air monitoring also, putting you in constant touch with factors affecting public quality of life.
Waste Water treatment plants, chemical and petrochemical plants are of high impact and entail environmental risks; people often complain about odours, thus leading to an increased fear for public health. An OlfoSense network guarantees protection in such cases, where the Bureau of Environmental Protection can react immediately if thresholds are exceeded.
Technology
- 4 Metal Oxide Semiconductors (MOS)
- Photoionization Detector (PID)
- 2 Electrochemical Cells (ECD)
- Optical Particle Counter (OPC)
Parameters
- Odour concentration (OU/m3)
- Total VOC (Volatile OrganicCompounds)
- NH3 & H2S
- PM10, PM2.5, PM1
Key features
- Outdoor operation
- Continuous monitoring
- Wireless network
- Odour/VOC/NH3/H2S/PMx

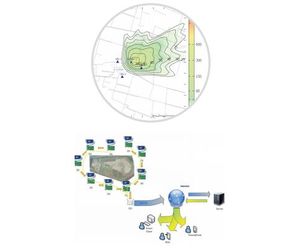

- Dispersion modelling
- 24/7 monitoring
- Wireless sensor network
- Combination of 3 sensors: photoionization detector (PID), electrochemical cell (EC), 4 metal oxide semiconductors (MOS)
- Outdoor operation
Alarms
- Whenever specific limits in concentration are to comply with, thresholds can be set within the device allowing plants’ owners and Authorities to put in place corrective actions if an alarm triggers.
Monitoring parameters
- Measurement time for cycle from 30 sec.
- Flush time for cycle from 90 sec.
- Number of cycles in sequence infinite
Detectors
- MOS Sensor: Each sensor works at specific temperature
- Array VOC detector:
- PID10.6eV
- Sensitivity: 5 ppb - 20 ppm (optional 25 ppb - 200 ppm)
- OPC detector
- Optical Particle Counter
- Detection limits (PM10): 0.01 pg/m3-1 500 mg/m3.
- H2S detector: Electrochemical cell- Sensitivity: 5 ppb- 50 ppm
- NH3 detector: Electrochemical cell - Sensitivity: 0.5 -100 ppm
Communications
- Data transfer
- UMTS
- ZigBee module (piloting external devices)
System Requirements
- Operating system Software
- Windows XP, Vista, Windows 7, Windows 10 OlfoMuster (setting), OlfoClient (supervision) SMIT (dispersion modelling)
Powering
- 25 W
- 220V/50Hz
Warranty
- 12 months
