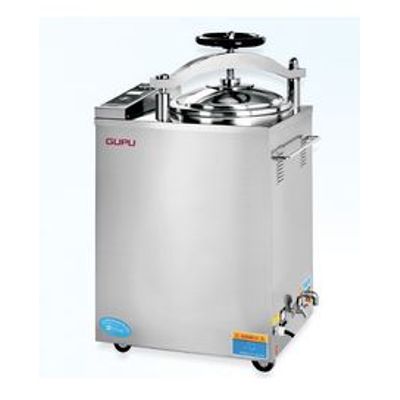

Gupu - Model GS-U -Fully Auto Vertical Pressure Steam Sterilizer with LCD Display

• Auto shut off with beep alarm, perfect drying
• Hand wheel door with selfinflating type seal
• LCD display with microcomputer controller
• Steam and water inner circulation system
• Auto protection of over temperature, over pressure, water lacking
• Door safety lock system

Chamber Size

• Volume 35L 50L 75L 100L
• Chamber Size φ318×450mm φ340×550mm φ400×600mm φ440×650mm

Pressure Performance

• Working Pressure 0.22Mpa
• Max. Working Pressure 0.23Mpa
• Temperature & Timming Performance
• Working Temperature 134℃
• Temperature Adjust Range 0-134℃
• Heat Average ≤±1℃
• Timer Range 0-99min/0-99hrs 59min

Display and Controller

• Display LCD display of working status, touch-type keys.
• Controller Micro-computer processor controller
• Sensor PT100
• Electric Supply
• Power Consumption 2.5KW 3KW 4.5KW 4.5KW
• Power Supply AC220V 50HZ/60HZ

Material and Construction

• External Material 304 stainless steel
• Internal Material 304 stainless steel
• Basket Material and Qty 304 stainless steel baskets, 2pcs

Size

• Overall Size(mm） 600×410×1030 650×410×1140 690×470×1140 730×510×1270
• Transport Size(mm） 730×500×1170 730×500×1290 760×550×1290 820×600×1380
• N.W/G.W 77/96Kg 83/102Kg 98/120Kg 110/135Kg

These series are assembled with heating system, microcomputer controlled system,over heat and over pressure protection system, which are reliable for the sterilizing effects,convenient of operation and energy conservation.They are ideal equipment for the scientific research institutes and the hospital laboratory.
