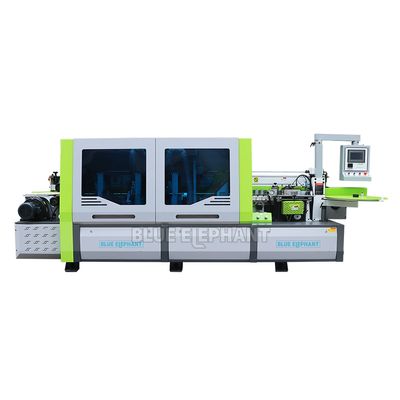

Blue-Elephant - Fully Automatic Edge Banding Machine with Fully Enclosed Safety Shield
This fully automatic edge banding machine has the functions of glue coating, cutting, finishing, flat scraping and polishing. A multi-purpose machine is easy to operate. Adopting intensive units with high-speed motors, it can ensure maximum finishing quality of the machine . In addition, equipped with a fully enclosed safety shield, it can ensure operator safety.
Most popular related searches
- Have multiple functions like glue coating, cutting, finishing, flat scraping and polishing.
- Equipped with a fully enclosed safety shield, it can ensure operator safety.
- Adopting intensive units with high-speed motors, it can ensure maximum finishing quality of the machine.
- It is easy to operate and maintain without special training.
- Machine Size 5400*970*1600mm
- Inverter Yatai
- Low voltage electrical appliance Korea LS Power Generation
- Temperature control table Korea Autonics
- Travel switch South Korea Kaikun
- Cylinder WSN
- Gas source parts Billion days
- Gear reducer Taiwan Shan State
- High speed motor UFC
- Rail Gao Xin Kate
- Feed rate 12-22m/min
- Sheet thickness 10-60mm
- Edge band thickness 0.4-3mm
- Sheet width ≥80mm
- Working pressure 0.6Mpa
- Total power 9kw
- Dimensions 5400*970*1600mm
