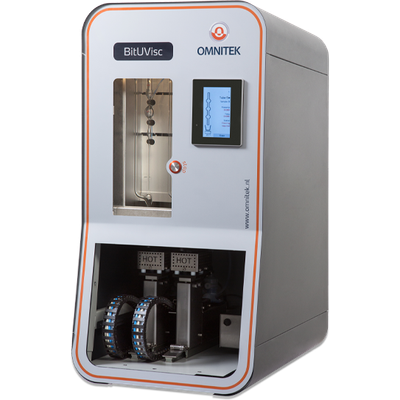

Omnitek - Model BitUVisc -Fully Automatic Kinematic Viscometer

• Measuring range: Up to 120,000 mm²/s, up to 150°C
• Temperature range: 15 – 150°C *
• Temperature stability: 15°C to 100°C ± 0.01°C *; Up to 150°C, ± 0.03°C
• Preheater temperature: Up to 200°C
• Timer accuracy: 0.001 s
• Sample volume:12 ml
• Sample introduction: Vacuum
• Solvent consumption:10 - 30 ml per cycle, sample dependent
• Sample throughput:
  • BitUVisc 110: up to 2 measurements per hour **
  • BitUVisc 120: up to 4 measurements per hour **
• Applicable standards: ASTM D445/D446, ASTM D2170, AASHTO T201, EN 12595
• Viscometer type: Ubbelohde based
• Duplo Measurement: Yes
• Sensor type: Thermal
• Built-in preheater: Yes
• Dual Solvent cleaning: Yes
• Communication: RS-232C
• PC software: Yes
• PC Control: Multiple instruments controlled with 1 PC
• Data Export: USB storage device
• Dimensions:
  • 110 / 120: 38 x 62 x 78 cm (w x d x h)
• Weight:
  • 54 kg (empty)
• Power requirement
  • 10A @ 230 V

*  For temperatures around ambient, an external cooling circulator is required
** Measurements per/hour; depends on viscosity, tube constant, temperature and solvents chosen. Measurement cycles are given for a sample with a viscosity around 50.000 mm2/s @ 40°C.

BitUVisc is available in 2 versions

• BitUVisc 110 & 120
• Nr. of baths : 1
• 1 or 2 viscometers

• Applicable for fuels, base oils, formulated oils, highly viscous samples like vacuum residues, additives, crude oilswaxes, heavy fuel oils, polymers, asphalts, etc.
• Meets all ASTM, EN, ISO, DIN, AASHTO T201, EN 12595 and standards related to kinematic viscosity standards
• Extremely accurate temperature control
• Extremely accurate flow-time measurement independent of fluid type
• Viscometer filling by vacuum method
• Innovative and efficient viscometer tube cleaning allowing cross contamination free operation
• Easy viscometer tube exchange
• Chemically resistant to an extended range of fluids and solvents
• Compact design
