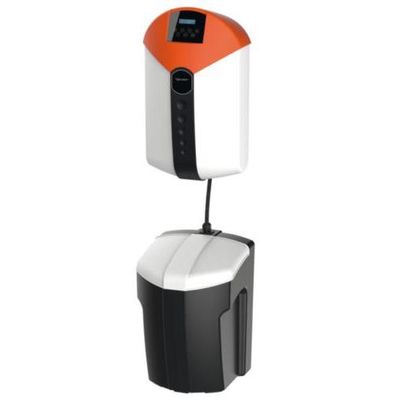

JUDO - Model i-soft SAFE+ -Fully Automatic Softening System

Measures and regulates
compensation for fluctuating input hardness and automatic adjustment of system settings – unique in the world

MyWater 24 h
two softening columns in parallel operation

Hygiene-optimized
stagnation-free, forced flow, automatic sanitation

Leak protection with automatic shut-off
Regular testing of the shut-off function
independently checks the shut-off function during a phase without water withdrawal

Safe in the event of a power failure
patented safety module guarantees the safe operating condition and leakage protection functionality for several hours

Connectivity module
for connection via LAN

Worldwide control
via app or browser

Security included
via encrypted communication

Signal display / lance technology
Siphon included

System consisting of fibreglass reinforced containers (PN 10) filled with high quality monospheric ion exchange resin in food quality for optimal water distribution and minimization of pressure loss and regenerant use. Separate salt and brine storage tank with continuous level monitoring and connection via lance technology. With i-guard inlet water sensor to measure incoming water quality, and i-matic blended water control for constant water hardness even with fluctuating inlet hardness. No manual hardness measurements or adjustment of the desired water hardness required. Wear-free ceramic disc technology that has been tried and tested hundreds of thousands of times for lifelong programmed operation. Forced regeneration after 96 hours, at the latest, and system hygienization by means of a built-in disinfection device with platinum-coated titanium electrodes. With i-safe+ leakage protection system to shut off the water pipe if individually preselectable limit values are exceeded (max. water volume, water flow and max. withdrawal time) and micro-leakage detection. Control electronics with touch sensitive keyboard and multi-line LCD display for: operation, regeneration, residual hardness, two-stage salt deficiency indicator, operating status coloured light display, as well as manual regeneration triggering and leakage protection function setting. With potential-free fault message, integrated connectivity module for connecting the i-soft via LAN connection to a home network and the Internet, iOS/Android and browser apps available, for worldwide access to extensive information, automated messages and functions such as setting the desired water scene or actuation of the i-safe+ shut-off valve. Integrated, battery-buffered emergency power module, which guarantees safe operating condition as well as leakage protection functionality even in the event of a power failure for several hours. Connection option for several floor sensors. Including built-in rotary flange with patented bayonet connection, with screw connections and assembly cover. Including siphon for standard-compliant connection to drain system in accordance with DIN EN 1717 and DIN 1988-100.
