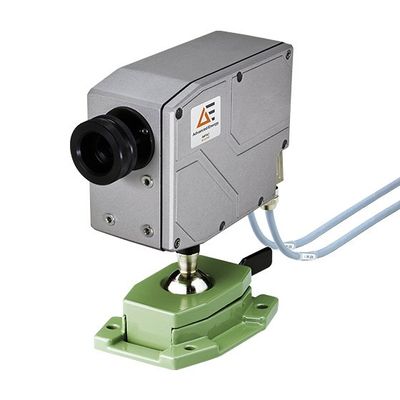

Impac - Model IS 12-TSP and IGA 12-TSP Series -Fully Digital, Extremely Precise Transfer Standard Pyrometer
Extremely precise Transfer Standard Pyrometers for exact inspection of calibration sources. Temperature ranges between 200 and 3000 °C. The Impac® IS 12-TSP and IGA 12-TSP represent exceptionally precise transfer standard pyrometers, designed to inspect calibration sources. Their detectors are thermostatically controlled, lending them high precision and making measurements largely independent of surrounding temperature variations, while achieving a resolution of 0.01 °C. Available across a wide temperature range of 200 to 3000 °C and in various spectral ranges, these pyrometers can be flexibly utilized with calibration sources that check pyrometers with silicon or indium gallium arsenide detectors.
Most popular related searches
calibration source
pyrometer
alignment laser
temperature monitoring
pyrometer calibration
laser alignment
temperature calibrator
- Temperature ranges between 200 and 3000°C
- Resolution of only 0.01°C
- Built-in, five-digit LED display
- Digital interface
- Focusable optics
- Accurately inspect your calibration sources
- Use with calibration sources with which pyrometers with silicon or indium gallium arsenide detectors can be checked
- Achieve high precision
- Ensure that temperature values, as stipulated by national institutes, can be transferred to your own calibration sources to guarantee traceability to the ITS90 international temperature scale
- Guarantee adherence to high technical specifications
- Operational temperature range (°C): 200 and 3000 °C (7 ranges in between)
- Spectral Range (µm): 0.65 and 1.57 (3 ranges in between)
- Measurement Uncertainty (°C): From 0.15% oR + 1 °C
- Optics (mm): Focusable optics
- FOV (minimum spot size) (mmm): Min 400:1 (0.7)
- Alignment / Sighting: Laser targeting or through lens sighting
- Interface / Output (mA): 0/4 to 20 mA
- Exposure Time t90 (ms): Multiple specifications. Please refer to Datasheet.
- Ambient Temperature (°C): 0 to 60
- Resolution (°C): 0.1
- Display: Built-in 5 digit LED display, additional function LEDs
- Protection Class: IP65 (according to DIN 40 050)
- Emissivity: 0.100 to 1.000 in 0.1% steps
- Weight (kg): 2.2
- Housing: Alu die-casting
- Connection: 12-pin connector
- Operating Position: Any
- CE-label: According to EU directives about electromagnetic immunity
- Isolation: Power supply, digital interface, analog output are galvanically isolated against each other and housing
- Wavelength Repeatability (pm): 1 °C
