Jimeca - Model JI-30000-R -Fully Hydraulic Multi-Hooklift
Our fully hydraulic multi-hooklift loading and unloading system on rollers has been imposed on the market thanks to the longitudinal displacement of the containers as the most suitable, reliable and easy to handle system. The hook arm can be extended and retracted in the collection and placement position, even under load, for the changes in the container’s position on ramps and/or trailers.
The proportional control system allows the placement and collection of the container in a sensitive and controlled manner. The device also incorporates an additional control system that, placed in the cabin of the vehicle, allows carrying out all the necessary maneuvers for the manipulation of the containers from inside the vehicle itself.
Only steels of great resistance are used in JIMECA, which allows us to offer a low height construction and a reduced own weight, providing a greater payload to the vehicle. Elements such as the hook and the rollers are made in cast iron, which gives them excellent mechanical characteristics, obtaining a greater resistance to wear, prolonging the service time of our equipment.
The maintenance of these devices is minimal, being limited almost exclusively to the lubrication of the moving parts.
The system has all the necessary elements to comply with the current safety regulations, and can be adapted to standards such as DIN 30722.
- Mechanical container anchoring system.
- Mechanical controls distributor operated from the vehicle’s cabin.
- Vertically extendable equipment column-hook, driven by hydraulic cylinder.
- Stabilizer or rear support roller.
- LOAD CAPACITY: 30.000 Kg.

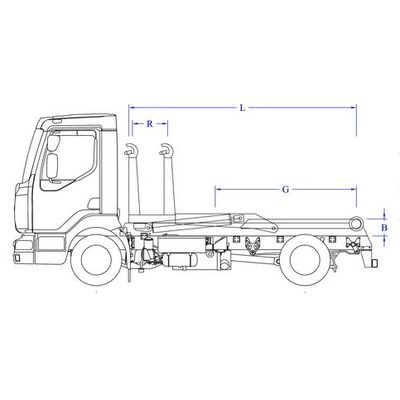

- EQUIPMENT LENGTH, L: 7.220 mm.
- CENTER OF GRAVITY, G: 4.000 mm.
- EQUIPMENT WEIGHT: 3.850 Kg.
- HOOKLIFT ANGLE, a: 45º
- EQUIPMENT GUIDE WIDTH, A: 1.070 mm.
- CHASSIS’ WIDTH, C: 860 mm.
- HOOK’S HEIGHT, H: 1.550 mm.
- height above the TRUCK, B: 350 mm.
- TURRET TRAVEL, R: 1.950 mm.
