Jimeca - Model JI-14000 C / JI-14000 M / JI-14000 L -Fully Hydraulic Multi-Hooklift
Our fully hydraulic multi-hooklift loading and unloading system on rollers has been imposed on the market thanks to the longitudinal displacement of the containers as the most suitable, reliable and easy to handle system. The hook arm can be extended and retracted in the collection and placement position, even under load, for the changes in the container’s position on ramps and/or trailers.
Our fully hydraulic multi-hooklift loading and unloading system on rollers has been imposed on the market thanks to the longitudinal displacement of the containers as the most suitable, reliable and easy to handle system. The hook arm can be extended and retracted in the collection and placement position, even under load, for the changes in the container’s position on ramps and/or trailers.
- Mechanical container anchoring system
- Mechanical controls distributor operated from the vehicle’s cabin.
Hydraulic System
- Flow Pump: 60 Lit. / Min.
- Working Pressure: 280 Kg./cm2
- Tank Capacity: 80 Lit.

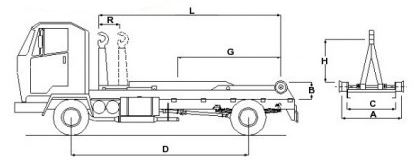

Chassis-Cabin (Key figures)
- Authorized Maximum Weight: 16.000 – 18.000 Kg.
- Wheelbase, D: 4.400 – 5.000 mm.
