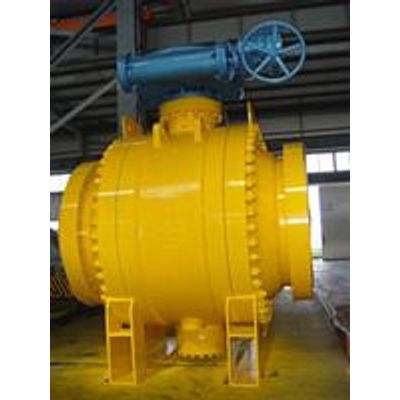

IVY - Fully Welded Ball Valve
Fully Welded, blow-out proof stem, anti-fire safe design, anti-static device, free leakage of body sealed construction, low torque in operation, double block & bleed, emergency sealing.
Most popular related searches
- Standard or Nonstandard: BS5352, API 6D
- Structure: Ball
- Pressure: 150LB-2500LB
- Operator: Lever, Gear, Pneumatic, Motorized, Hydraulic
- Material: SS316, SS304, WCB etc
- Temperature of Media: -50~280 ℃
- Port Size: 1/2 inch -36 inch
- Place of Origin: Zhejiang, China
- Connection: Flanged, Welded, Threaded
- Design Standard: BS5352, API 6D
- Test Standards: API 598
- Face to Face dimension: ANSI B16.10
- End Flange Dimension: ANSI B16.5
- Butt-weld Ends: ANSI B16.25
- Full welded ball valves are widely used in natural gas, oil, heating, chemical and thermoelectric pipe network and other areas of long-distance pipelines.
- Sealing carbon reinforced PTFE seals negative pressure elastic slope on the sphere, so that seal zero leakage, long life and so on.
- The valve compact, light weight, easy to heat, easy to install.
- The main advantage is that it is almost no leakage phenomenon.
- Pressure: 150LB-2500LB
- Size: 1/2”~ 36”
- Body Material: WCB LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3M, CF8C
- Sealing material: PTFE, PEEK, NYLON, RPTFE
- Operator: Lever, Gear, Pneumatic, Motorized, Hydraulic
- Connection: Flange, Welded, Threaded
- Stem with explosion-proof design.
- Temperature range: -50~280 ℃
