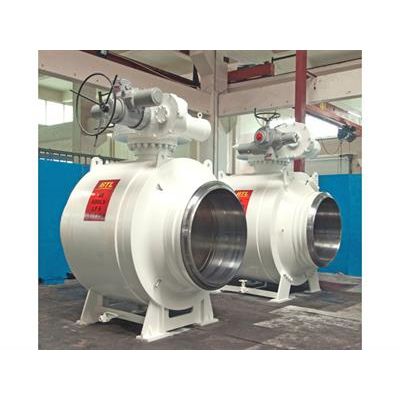

Boteli - Fully Welded Body Ball Valve
Design standard：API 6D. Length of structure: API 6D. For product beyond the scope of the standard, it shall be manufactured by specifications in BTL standard or user`s requirements.
Most popular related searches
ball valve
trunnion mounted ball valve
trunnion mounted valve
quarter-turn ball valve
welded ball valve
hydraulic pneumatics
fireproofing
- Flange connecting end：ASME B16.5/ASME B16.47
- Butt welding connecting end：ASME B16.25/ ASME B31.8
- Wall thickness：ASME B16.34
- Fireproof test：API 607/API 6FA
- Inspection and test：API 6D
- Pressure and temperature rating：ASME B16.34
- Product scope：NPS 4″～NPS 60″,CL150～CL1500
- Main body material:A105、LF2、F304、F316、F304L、F316L、F51etc.
- Valve seat material:PTFE、RPTFE、NYLON、DEVLON、Derlin、PEEK、PPL、HNBR、FKM or metal hard seal etc.
- Drive device:handle, worm wheel, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc.
