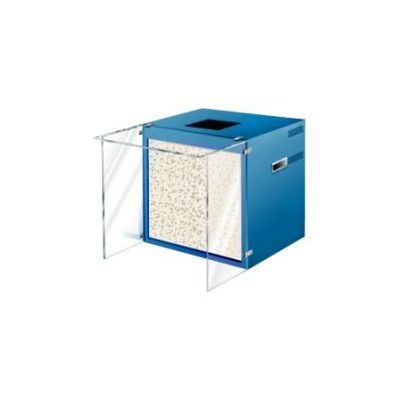

Airflow - Fume Booth
Whether a benchtop paint booth or a portable paint booth, the full line of Airflow Systems paint, spray, and fume booth products is readily accessible for jobs involving spray painting, grinding, polishing, and soldering. The benchtop spray booths and portable paint booths provide high-efficiency collection and filtration. Both the benchtop and portable lines offer optional filter media and adsorption modules for a broad range of applications.
Most popular related searches
- Portable, self-contained unit: No installation required, easy to set up and use anywhere.
- High efficiency 3-stage filtration: Provides up to 98% filtration efficiency.
- Hinged, removable top and side shields with built-in side handles: Easy access for cleaning and filter changeout.
- Acrylic top and side shields: Enhances worker visibility.
- Plug-in operation with any 115V outlet: Can be used anywhere, no special wiring required; operates with simple on-off switch.
Options
- HEPA Main Filter: 99.97% DOP efficiency.
- Adsorption Modules: 12-in. v-bank refillable after-filters.
- Extended Side Shields: Extends width to 30 in.
Specifications
- Construction: 18 ga. steel cabinet, 2-part chemical- and oil-resistant finish, removable acrylic top and side shields
- Blower Pkgs (HP): 1/10 HP
- Noise Level (dBA): 51-54
- Electrical: 1/10 HP - 115V, 2.7 amps, std.; 1/10 HP - 220/1/50, 1.4 amps.
Dimensions
- Width: 22.00”
- Height: 24.00”
- Depth: 15.00”
