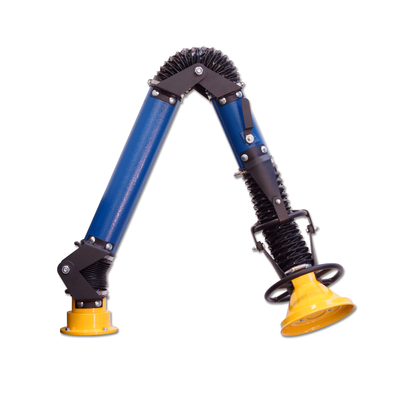

Menegon - Model Oskar 75 -Fume Extraction Arm
Oskar 75 self-supporting fume extraction arm is designed to service many types of dust and fume emissions. The principle of Oskar 75 construction are all adjustments and supports on the outside. Oskar 75 fume arm duct is free from any internal adjustment mechanisms (except for air flow damper). We are delivering easy positioning, simple maintenance and long operational life time of your local source capture system with Oskar 75 construction.
Most popular related searches
fume extraction arm
extraction arm
fume extraction
laboratory fume
air pollution
damper
solder fume
laboratory dust
dust emissions
Application
- soldering, laboratory fumes, light dust, painting
- temperature resistance up to 80°C
- recommended airflow 100÷150 m3/h
- non-explosive and non-aggressive air pollution
Construction
- all adjustments on the outside
- aluminium hood with air diverter (yellow)
- grab handle all around the hood
- aluminium hood joints (black)
- middle and swivel steel joints (black)
- aluminium and steel mounting swivel (yellow)
- smooth tubes (painted blue or grey)
- standard built-in air damper
- black PVC flexible hoses (temperature resistance up to 80°C)
- standard powder coating
