Lamsystems - Model SHV-1,0-Laminar-S. -Fume Hoods
FromLamsystems

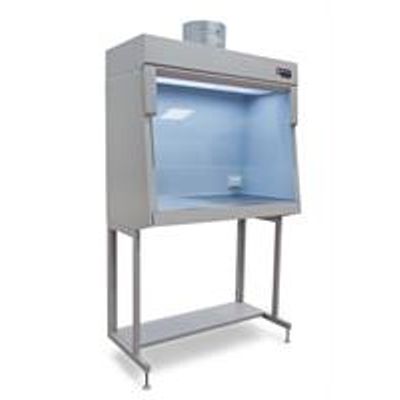

Fume hood SHV-1,0-“Laminar-S.” is designed for use in laboratories providing operator’s protection when working with chemically harmful materials and for their effective removal.
Most popular related searches
fume hood
back pressure valve
drain valve
exhauster system
water supply
tap water
water supply modeling
hazard potential
pathogenic microorganism
toxic gas
- Removes chemically harmful and low-toxic materials from the working zone providing operator’s protection in laboratories with different profiles .
- Fume hoods are designed to be used as part of the external exhaust system in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
- Fume hoods are used for studies and works causing and spreading toxic vapors and gases harmful to human health and for work with materials that require quick elimination of accessory substances from the operating area.
- Fume hoods are not to be used with hazardous and potentially hazardous pathogenic agents and microorganisms.
- All-metal frame;
- Stainless steel tabletop;
- Adjustable stand allows to horizontally level the work surface;
- Illumination lamp with protection screen located inside the working chamber;
- Electrical sockets inside the cabinet for connection of additional tools;
- All metal surfaces powder coated and resistant to disinfectants;
- Built in vent fan;
- Slanted front sash made of tempered glass can be fixed in two positions;
- Back-pressure valve prevents air from flowing back into the chamber;
- Flange adapter for connection to the external exhaust system, diameter 250mm;
- Tabletop can be produced from tempered glass (optional);
- Dimensions of the assembled cabinet with stand, mm (WхDхH) 1020х621х1920
- Dimensions of the work chamber, mm (WхDхH) 1020х621х1120
- Mass of assembled cabinet with the stand, kg, not more than 84
- Input power of the cabinet, W, not more than (exclusively of the load on the built-in outlets) 60
- Input power of the fan, W, not more than 31
- Maximum load allowed on the sockets, W 1000
- Luminance level in the working zone, lux, not less than 1000*
- Airflow outflow volume, m3/hr, not less than 400
- Noise level at the 1 m distance from the cabinet, dB, not more than 55
- gas tap without electromagnetic valve
- vacuum tap without electromagnetic valve
- additional set of sockets (installed on the left side)
- stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the left side)
- stainless steel sink 165х288х120 together with drain valve and mixer tap (0.05.1) (installed on the right side)
- mixer tap for water supply (hot/cold)
- tap for water supply (brass) (model 11080.1)
- cabinet base with an air vent (together with the fume hood)/(in a separate package)
- tabletop «Polystone»-1,0
