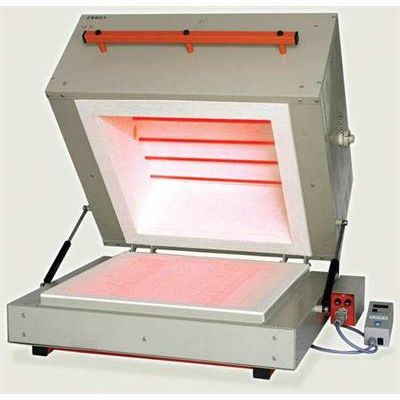

Vesta - Model GFK / ECO Series -Fusing Kilns for Hobbyists
Max. Operating Temperature : 850°C. Temperature Control : With anyone of the programmers to be connected HAN7Da multipolar socket. witching Device : Contactor with Surge Suppression / SSR - Solid State Relay (optional). Thermocouple : Type K (NiCr-Ni) inserted in ceramic tube.
Most popular related searches
digital temperature controller
ceramic fiber
hole opener
type k thermocouple
damper
ceramic density
thermocouple
natural radiation
TEMPERATURE CONTROLLERS
- Compact plug-in Temperature Programming Devices of either BENTRUP or PIXSYS can be supplied.
- Thermal Insulation : High density ceramic fiber (multilayer)
- Heating Surface : Top
- Heating Elements : Resistance wire wound inside quartz tubes to ensure uniform radiation
- Cooling : Natural cooling through ventilation holes
- Lid Opening : Manual by the help of pressurized gas dampers
- Body Construction : Folded sheet metal
- INOX Lovers : Dat patterned Stainless Steel (Order Code turn to GFK/INX )
- Frame Construction : Welded steel profiles
- Coating : Thermoset powder coat
- Standard Color : Beige (RAL 7032 W) + Orange (RAL 2004 W) - Other colors on request.
- Connection : Single/Three Phase + Neutral + Earth
- All the models are fitted with CE Plug and cable.
