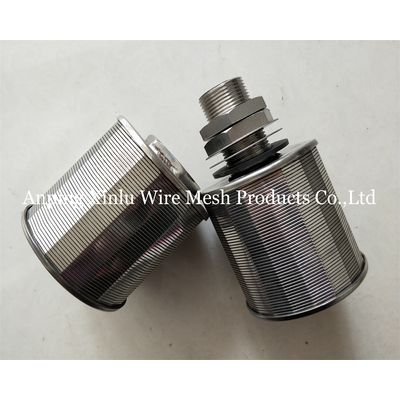

FY-XL-PT Double Head Screen Nozzle
No. Model Type Slot Dimension 0.2-0.25mm open areas (mm2)
D H L Threaded M
1 FY-XL-ST-45-A 0.2-0.5 45 30 Available in customer design 25 300
2 FY-XL-ST-45-B 0.2-0.5 45 35 25 330
3 FY-XL-ST-45-C 0.2-0.5 45 40 25 400
4 FY-XL-ST-45-D 0.2-0.5 45 45 25 450
5 FY-XL-ST-53-A 0.2-0.5 53 30 30 450
6 FY-XL-ST-53-B 0.2-0.5 53 35 25 400
7 FY-XL-ST-53-C 0.2-0.5 53 40 30 500
8 FY-XL-ST-53-D 0.2-0.5 53 45 30 550
9 FY-XL-ST-53-E 0.2-0.5 53 45 32 630
Note: 1. One Nozzle with a rubber gasket, same material gasket and two thin nuts.
2. Available in customer design for perforated plate.
3. We can produce according to clients requirements.
Material: 304、321、316、316L、904L 、Hastelloy B and C, etc.
