FYCG - Model YPS17B -Experimental Grade Graphene Preparation System

Graphene ultrasonic equipment is specifically used in the graphene preparation process. By applying ultrasonic waves to a liquid medium, the unique cavitation and mechanical effects of ultrasonic waves are used to achieve the purpose of processing. It is an important link in the preparation and application of graphene.

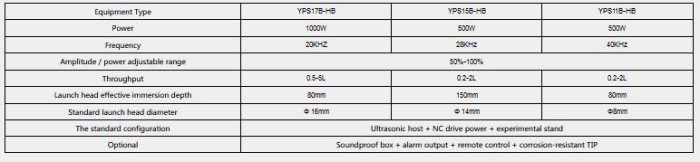

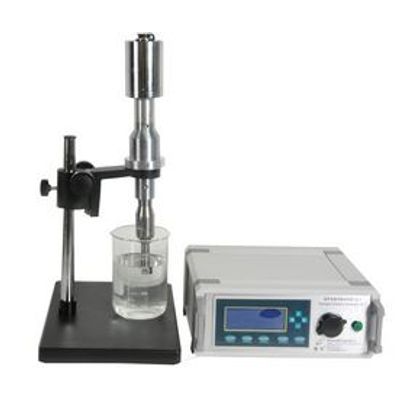

Graphene ultrasonic experimental equipment is generally used in the laboratory. The ultrasonic power is 500W to 1000W, and the processing capacity is 0.2 to 5L. The main configuration is an ultrasonic host, a NC drive power supply, and an experimental stand.

1. Typical applications include homogenization, emulsification, dispersion, and solution Polymerization and wet milling (reduced particle size), cell destruction
2. Crushing and disintegration, extraction, degassing, and sonochemical processes Newly designed display makes it easy Observe the actual operating frequency and perform work Rate / amplitude adjustment
3. Automatic frequency tracking to ensure that you are always there Best working condition
4. Automatic matching tracking to ensure the frequency (power) is in the best working state
