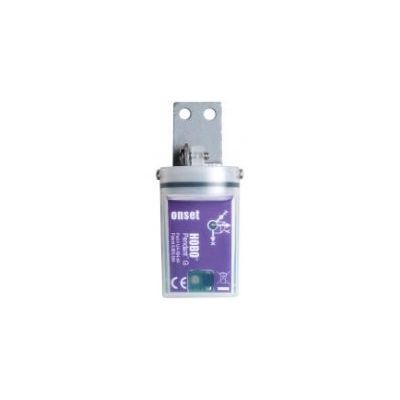

HOBO Pendant - Model UA-004-64 -G Data Logger

• Low-cost acceleration and tilt measurement
• Waterproof housing for wet or underwater use
• Data readout in less than 30 seconds via fast Optic USB interface

Environment:
The UA-004-64 Data Logger is for use inIndoor , Outdoor and Underwater environments

Measurements:
The UA-004-64 Data Logger supports the following measurements: Acceleration, Tilt

• Measurement range: ± 3 g; 29.4 m/s² (96.5 ft/s²)
• Accuracy:
• ± 0.075 g; 0.735 m/s² (2.41 ft/s²) at 25°C (77°F);
• ± 0.105 g; 1.03 m/s² (3.38 ft/s²) from -20°C to 70°C (-4°F to 158°F)
• Resolution: 0.025 g; 0.245 m/s² (0.8 ft/s²)
• Logging interval:
• 1 second to 18 hours, 12minutes, 15 seconds in Normal mode
• 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz) in Fast mode
• Time accuracy: ± 1 minute per month at 25°C (77°F)
• Operating range:
• In water/ice: -20° to 50°C (-4° to 122°F)
• In air: -20° to 70°C (-4° to 158°F)
• Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)
• Battery life:
• 1 year typical use in Normal mode;
• 7 days logging at 0.01 seconds (100 Hz) in Fast mode
• Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)
• Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
• Weight: 18 g (0.6 oz)
• Dimensions: 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
• The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
