Gale Pacific - Model Aquacon™ 345 -Premium Polyethylene
A premium polyethylene scrim reinforced polyfabric, specifically designed for floating cover and liner applications. Lightweight, flexible and durable Aquacon™ 345 exhibits class leading welding characteristics, providing effective and efficient field welding performance, ideal for in-factory fabrication and deployment on-site.
Most popular related searches
floating cover
cover pond
heavy metals
tank liner
materials recycling
floating pond cover
tensile properties
channel cover
pond cover
chemical recycling
The high strength woven HDPE scrim reinforcement and engineered UV-stabilised polyethylene coatings provide outstanding puncture and abrasion resistance to withstand the harshest of installation and environmental conditions.
- Light weight polyethylene enables large liner sections to be prefabricated for speedy installation on-site
- Woven scrim reinforcement provides dimensional stability and high puncture, tear and tensile performance properties
- Engineered polyethylene coatings provide superior abrasion resistance, UV-resistance and excellent chemical resistance
- Excellent welding and layflat characteristics for easy pre-fabrication and efficient in-field installation
- Flexible coating requires no polymeric or liquid plasticiser eliminate chemical leaching
- 100% recyclable material ensures minimal impact on the environment with no chlorine or heavy metals in the production of the product
- Channel Liners

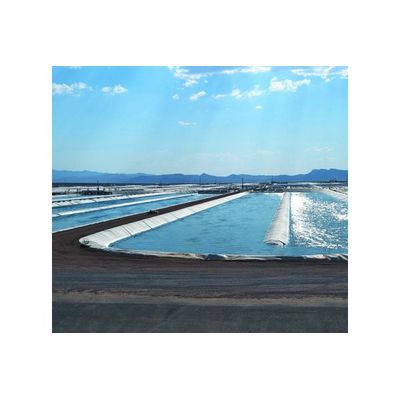

- Floating Cover
- Pond & Dam Liners
- Tank Liners
- Nominal fabric mass345gsm ± 10
- Thickness (mean) (mm)0.45mm
- Roll length (m) : Jumbo (1,200 – 1,400m)
- Roll width (m) : 2.05 width
- Tensile strength - warp : 1516N / 50mm
- Elongation at break - warp : 19.5%
- Tensile strength - weft : 1485N / 50mm
- Elongation at break - weft : 20.5%
- Wing tear - warp (mean) : 135N
- Wing tear - weft (mean) : 137N
- Bursting strength : 3300kPa
- Hydrostatic pressure (mean) : >250kPa
