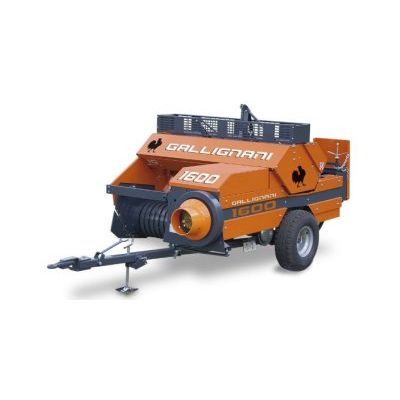

Gallignani - Model 1600 -Baler
The Gallignani baler models 1600 and 2690 are special machines of very light weight and maximum agility. Most technical solutions are similar to those of the larger models but, thanks to their unique specifications, they can be used on very steep or very soft terrains, like mountains or rice fields, providing a surprising farming experience. Among their accessories we find the hydraulic pick-up lift, the mechanic of hydraulic drawbar adjustment systems and the humidity sensor for the compression chamber.
Most popular related searches
- Recommended tractor engine power: 25 cv
Performance (approximate for 1m long bales, in ideal work conditions)
- Bale weight - Straw: 15-20 kg
- Bale weight - Hay: 20-30 kg
- Productivity: 300 bales / hour
Pick-up:
- Picking width including flap: 130 cm
- Net pick-up width (wall-to-wall): 114 cm
- Picking system: 4 bars with 15 teeth
- Hydraulic adjustment of pick-up height: Optional
- Sensing wheel (RH side): Optional
Compression chamber and tail:
- Bale section: 36x46 cm
- Ram travel and strokes/min (at 610 PTO rpm): 66 cm / 100 spm
- Hydraulic adjustment of bale density: N.A.
- Humidity sensor with carry-on display: Optional
Knotter:
- Knotter types: 2 twines
- Night light: Optional
- Centralized knotter lubrication system: Optional, oil type
- Automatic lubrication system with electric pump: N.A.
- Double knotter fan: N.A.
Drawbar:
- Fixed: Standard
- Mechanical adjustment: Optional
- Hydraulic adjustment: Optional
Drivelines:
- Knotter and first fork: Chain
- Pick-up: Belt
- Cardan shaft: Included
- Wide angle cardan shaft: Optional
- Double cardan shaft: N.A.
- Twine box: 4 reels
Accessories:
- Road lights: Optional
- Mechanical bale counter: Standard
- Electric bale counter: N.A.
- Rear axle steel roller: Optional
- Skids: N.A.
Dimensions and weights:
- Width: 187 cm
- Length: 414 cm
- Height: 160 cm
- Wheel size LH: 10.0/80-12
- Wheel size RH: 7.00-12
- Weight: 1.160 kg
