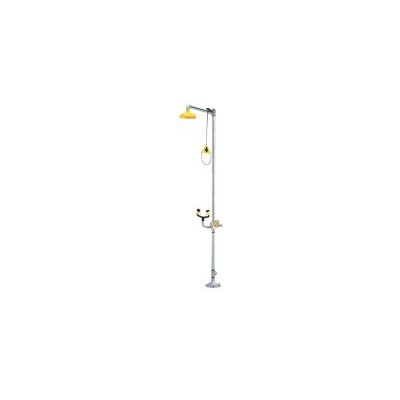

Encon - Model 30 gpm Shower, 3.2 gpm Eyewash -Galvanized Pipe
Encon`s combination shower/eyewash without bowl features: Schedule 80 hot dip galvanized steel piping; 1/2`CP bronze EFW valve;1` CP bronze shower stay open valve with CP ball; SS valve stem; ss push plate actuation graphic; SS pull rod assembly with actuation graphic.
Shower Head
High visibility ABS plastic; self-adjusting 30 gpm (113.6 lpm)*; delivers minimum of 20" (50.8 cm) diameter, dispersed pattern for target area of 60" (152.4 cm) above standing level; 20 gpm option also available.
Eyewash Fountain Choices
- ABS plastic heads, wye and float off covers secured with SS bead chans; self adjusting regulator to flow at 3.2 gpm (12.1 lpm).*
- Acetal heads with hinged covers, BCP wye; self-adjusting regulation to flow at 2.4 gpm (9.1 lpm)*.
Facewash Fountain Choices
- ABS plastic heads, wye and float off covers secured with SS bead chans; self adjusting regulator to flow at 8.0 gpm (30.3 lpm).
- ABS plastic heads and float off covers secured with SS bead chains, BCP wye; self-adjusting regulator to flow at 8.0 gpm (30.3 lpm)*.
Supply - 1-1/4" NPT connection
Waste - 1-1/4" NPT connection
Ship Weight - 41 lbs (18.6 kg) With Add-on Accessories, weight will vary.
* Varying hydraulic conditions of 30 to 70 psi (206.8 to 482.6 kPa)
30 gpm Shower, 3.2 gpm Eyewash
- Pipe: Schedule 80 - Galvanized
- Shower Head: ABS Plastic - 30 gpm
- Fountain Type: 3.2 gpm Eyewash - ABS Heads & BCP Wye
- Special Features: NO Bowl
