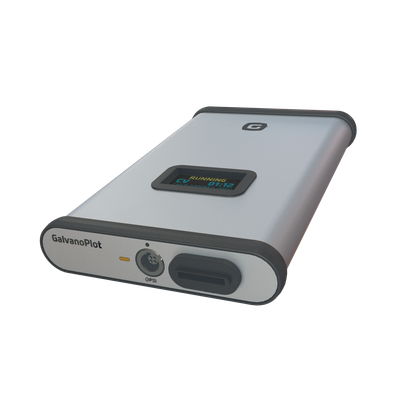

GalvanoPlot - Model GX200 Series -Compact Potentiostats
The GX200 Series is a line of compact potentiostats designed for on-site applications in electrochemical research laboratories. These instruments support a range of popular electrochemical techniques and are tailored for biosensor applications. They are highly versatile, applicable to electrochemical sensors, corrosion studies, battery development, super-capacitors, and fuel cells. A key feature is the advanced PC software, which allows control of multiple units from a single interface, facilitating parallel experiments and customized multiplexing tasks. The devices are housed in an aluminum enclosure with shielded sensor cables for noise reduction. Optional configurations include battery and Bluetooth Low Energy for wireless operation. Offering high precision with a current resolution of 0.002% of the current range and impedance spectrum up to 200 KHz, these potentiostats are a practical solution for both laboratory and field use.
Compact series potentiostats enable on-site analysis in electrochemical research laboratories using most popular electrochemical techniques.
These small and affordable portable instruments enable you to develop applications tailored for your research needs. Compact series instruments are optimized for biosensor applications but they are also an ideal solution in many research areas, such as other electrochemical sensors, corrosion, battery and super-capacitors or fuel cells.
Advanced PC software enables control of multiple units from same screen and at the same time, setting up parallel replicates and spools for a more customized multiplexing experience.
Aluminium enclosure and shielded sensor cable lowers the noise and optional configuration with battery and Bluetooth Low Energy enables wireless connectivity.
Choose the instrument configuration that fits best to your electrochemistry application needs over a variety of instruments and upgrade options.
Small, yet powerful electrochemistry interfaces for lab or field.
- Compact and portable
- Advanced software with multiplexing capability
- Covering all common electrochemical techniques
- Wired and wireless connectivity through USB and BLE
- Aluminium enclosure and shielded sensor cable
- Built-in screen
- Optional battery and Bluetooth LE
- Tailored to your needs as a stand-alone device in the field
- Operating mode : Bi-Potentiostat/ EIS Analyser
- Current resolution : 0.002 % of current range (100 fA on lowest current range)
- Maximum current : ±20 mA
- Impedance spectrum range : 200 KHz
- Number of channels : 2
- Electrochemical cell compatibility : WE1, WE2, RE and CE; WE1, WE2 and RE/CE, IDE, IDA
- Sensor interface : GPSI to 5x2 mm Banana plug bundle and optional built-in screen printed sensor interface
- Number of current ranges : 10 and Autorange
- Number of current ranges remarks : 10 nA to 20 mA
- Potential accuracy : ≤0.1%
- Potential scan range : ±3 V
- Potential resolution : 10 µV
- PC interface : USB-C
- Android mobile device interface : USB-C OTG
- Multiplexibility : Up to 256 devices, over SUITE software
- Power : USB; 5VDC / 45 mA max
- Dimensions (W/H/D) : 48 x 37 x 23 mm
- Weight of the instrument : 63 gr
