Gantner Instruments - Model Q.series XL -DAQ Systems
All Q.series X DAQ systems possess the same measurement capabilities and performance, regardless of form factor. The main differentiating quality between the XL and XE versions of Q.series X is the Fieldbus communication protocol (Localbus or EtherCAT), which can be interchanged on Q.series X modules using a simple firmware update.
Q.series XL DAQ systems are specialized for Localbus (XL) Fieldbus communication and possess interfaces for CAN, Modbus TCP/IP, Modbus RTU, PROFIBUS, PROFINET, publish/subscribe and messaging protocols, e.g., OPC UA, DDS, and MQTT and custom controller plugins for customer-specific communication protocols.
All electrical, mechanical and thermal parameters can be measured with dedicated Q.series X modules. They can be easily combined and extended. Data streams with different sampling rates can be merged together for efficient post-processing.
Q.series X I/O Signal inputs Design – ANALOG
I/Os for almost all sensor types Strain gage module with DC and CF excitation
- Voltage
- Current
- Resistance
- Potentiometer
- RTD / Cryogenic thermistor
- Thermocouple
- Strain gage: Full-, Half-, Quarter-Bridge
- Inductive full-& half bridge
- LVDT
- IEPE / Charge
- Analog output
Q.series X I/O Signal inputs Design – DIGITAL
Frequency, PWM: Input and output Specials: Quadrature, up/down counter, missing tooth detection, chronos method
- Frequency / Counter
- Pulse-width modulation
- Time
- Status
Q.series X I/O Signal inputs Design – HIGH VOLTAGE
Inputs for voltage, current, thermocouples, Pt100, NTC, IEPE, strain gage and much more
- Voltage
- Current
- Resistance
- RTD
- Thermocouple
- Strain gage
- IEPE

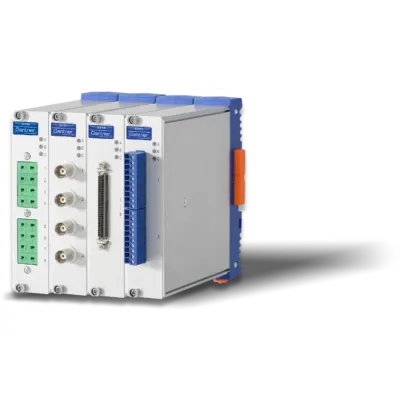

Flexible Form Factors
We offer a variety of modular packaging styles. Choose between Distributed and Flexible DIN rail modules (bloxx), Portable and Compact (brixx), or Multi-channel 19” Rack Systems (1U & 3U).
Q.series X measurement module I/O cards and front plates with their connector terminals can be interchanged between the bloxx, brixx, and raxx (3U) form factors, so you can always adapt your system’s housing with minimal investment.
