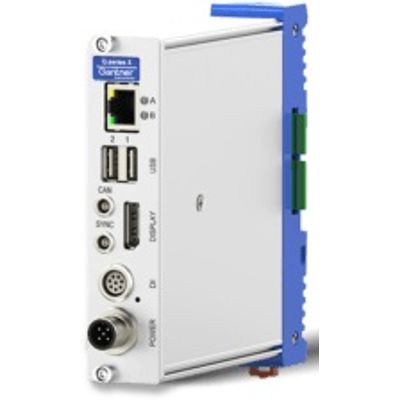

Gantner Instruments - Model Q.station X -Intelligent Controller
The Q.station X is an intelligent controller that can be combined with Q.series XL modules to form custom DAQ systems. The Q.station X Controller and Q.series XL measurement modules are designed for industrial and experimental testing. Q.series XL products are exceptionally well suited for performing highly synchronized, multi-channel measurements of electrical, mechanical, and thermal signals on engine and component test benches and long-term process monitoring applications.
The Q.station X connects up to 64 I/O modules for reliable 24/7 operation. Create up to 20 independent, PC-less multifrequency data loggers up to 100 kS/s while measuring up to 100 kHz per channel and utilizing powerful arithmetic functions. Fieldbus interfaces for CAN, Modbus TCP/IP, Modbus RTU, PROFIBUS, PROFINET, and support for publish/subscribe and messaging protocols, e.g., OPC UA, DDS, and MQTT and custom controller plugins for customer-specific communication protocols.
- For computer-independent data logging
- Up to 64 I/O modules connectable
- Distribute and Daisy Chain I/O modules or connect directly
- Multiple sampling rates
- RT Linux operating system for reliable 24/7 operation
- CAN bus port
- ModbusTCP, Modbus RTU with external adapter, e.g., RS485 to USB
- 2 USB ports for, e.g., GPS mouse
- Time synchronization with NTP, PTP, IRIG
- test.con available (XT-version)
- Multiple interface options, e.g., OPC UA, DDS, and MQTT
- Interfaces : Q.station X
- Ethernet TCP / IP : yes
- EtherCAT : yes
- ProfiNet : yes
- Connectivity : Q.station X
- Configuration (local or remote) via GI.bench : yes
- Modem : (Optional external device)
- GI.cloud connection : yes
- Data Logging / Control : Q.station X
- Sampling rate : Up to 100 kHz / 4 MHz with Q.boost A101
- Continuous Logging : yes
- Event-based Logging : yes
- Triggered Logging : yes
- # of data loggers with arithmetics / filters : 20
- Data Storage : Q.station X
- RAM [MB] / Flash [MB] : 500 / 4000
- SD card : yes
- USB Expandable : 2 slots
- DAQ Modules : Q.station X
- Number of DAQ modules : Connect up to 64 Q.series X modules
- Digital inputs and outputs : 6 inputs / 4 outputs
- Analog input : -
- Programming : Q.station X
- Programmable edge computing (Real-time) : yes
- Programmable edge computing (Non Real-time) : yes
- Can install apps (external) : yes
- Display with touch (optional) : yes
- Typical power consumption [W] : < 12
